Front Floor Console Center Compartment Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

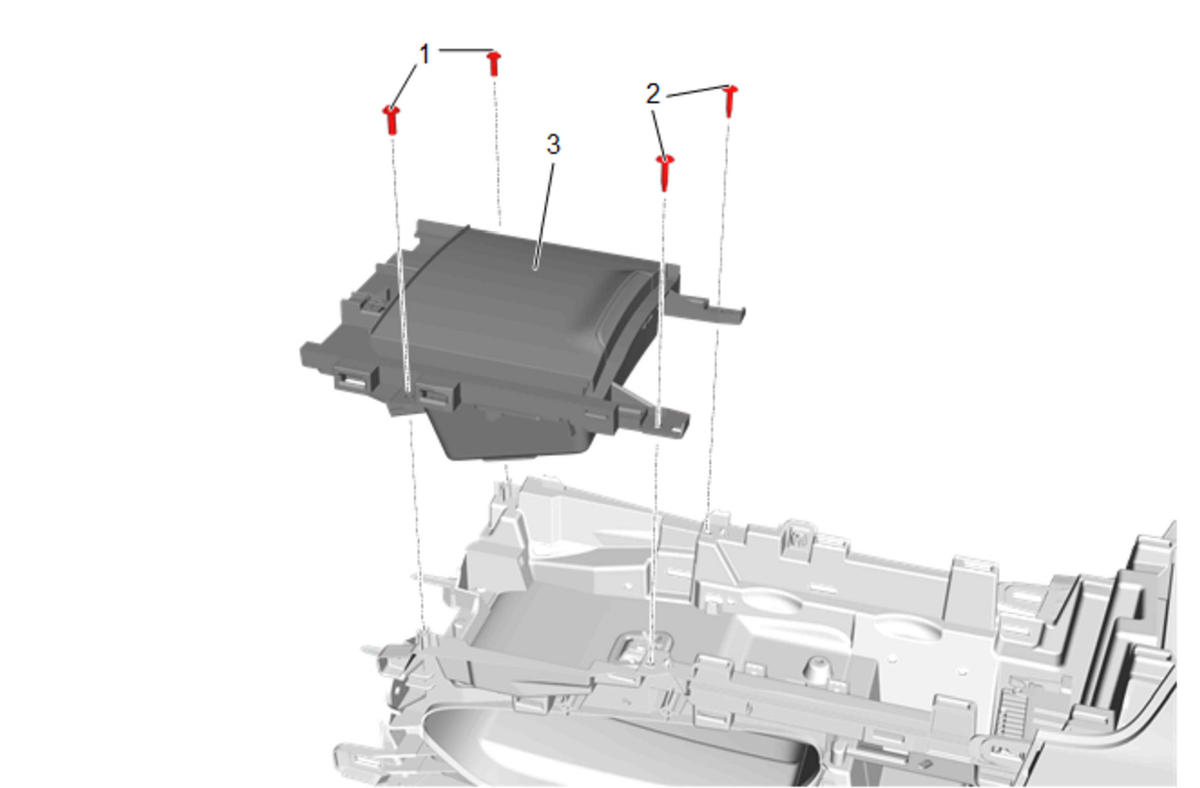

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Replacement Front Floor Console Compartment Replacement Front Floor Console Trim Plate Replacement Front Floor Console Side Trim Panel Replacement
1	Front Floor Console Bolt @ Front Floor Console Center Compartment [2x] CAUTION: Fastener Caution Tighten 3.8 N.m (34 lb in)
2	Front Floor Console Retainer Bolt [2x] Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Center Compartment Procedure If equipped, disconnect the electrical connector. Transfer components as necessary.
