Front Floor Console Trim Plate Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

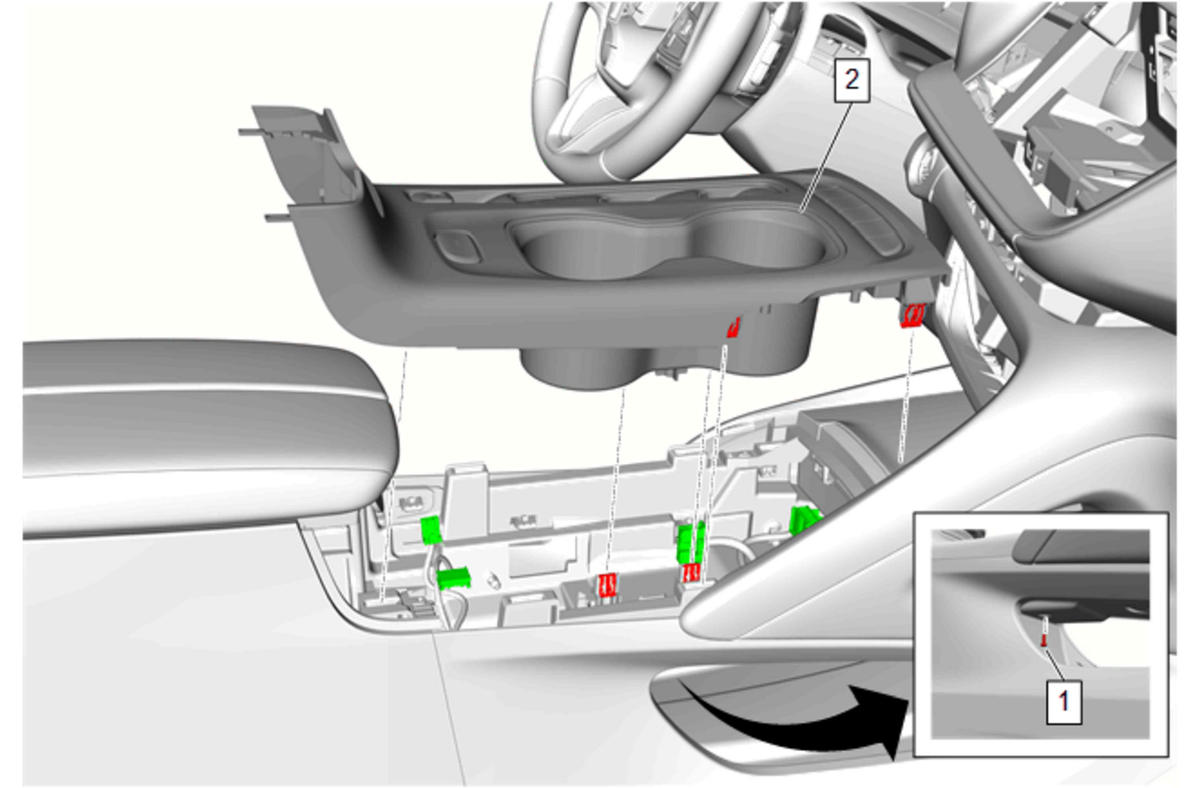

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement
1	Front Floor Console Trim Plate Bolt CAUTION: Fastener Caution Tighten 3.8 N.m (34 lb in)
2	Front Floor Console Trim Plate Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Floor Console Compartment Replacement

Front Floor Console Trim Plate Bolt

CAUTION:

Fastener Caution

Tighten
3.8 N.m (34 lb in)

Front Floor Console Trim Plate

Procedure

Use a flat bladed plastic tool to remove.
Disconnect the electrical connectors.
Transfer components as necessary.
