Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW gaskets.

Catalytic Converter Gasket (2) - Install [ 2x ]
With the aid of an assistant, fit the exhaust front muffler assembly (1) to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

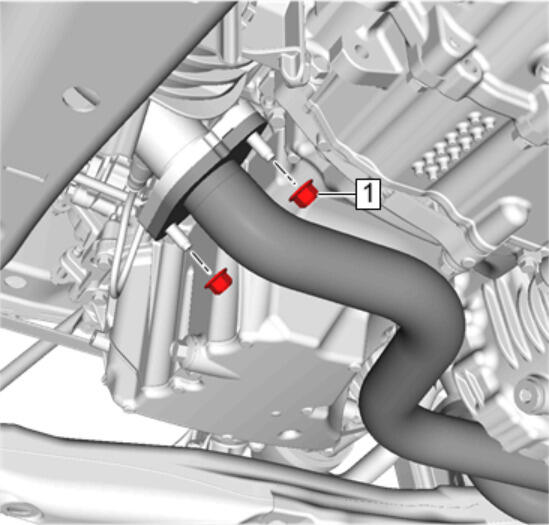

Exhaust Front Pipe Nut (1) - Install and hand tighten [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

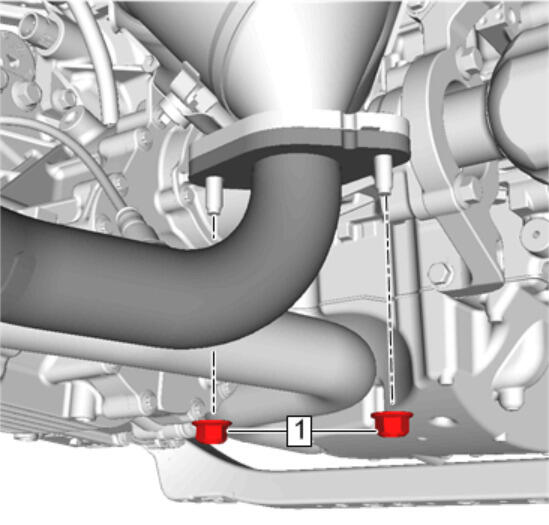

Exhaust Front Pipe Nut (1) - Install and hand tighten [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Tighten [ 2x ] 58 N.m (43 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Tighten [ 2x ] 58 N.m (43 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Exhaust Intermediate Hanger (2) - Install - Exhaust Intermediate Hanger Replacement
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (2) @ Exhaust Front Muffler - Connect - Exhaust Muffler Replacement
Heated Oxygen Sensor-Bank 1 Sensor 2 - Connect - Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 (AWD) , or Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 (FWD)
Courtesy of GENERAL MOTORS COMPANY

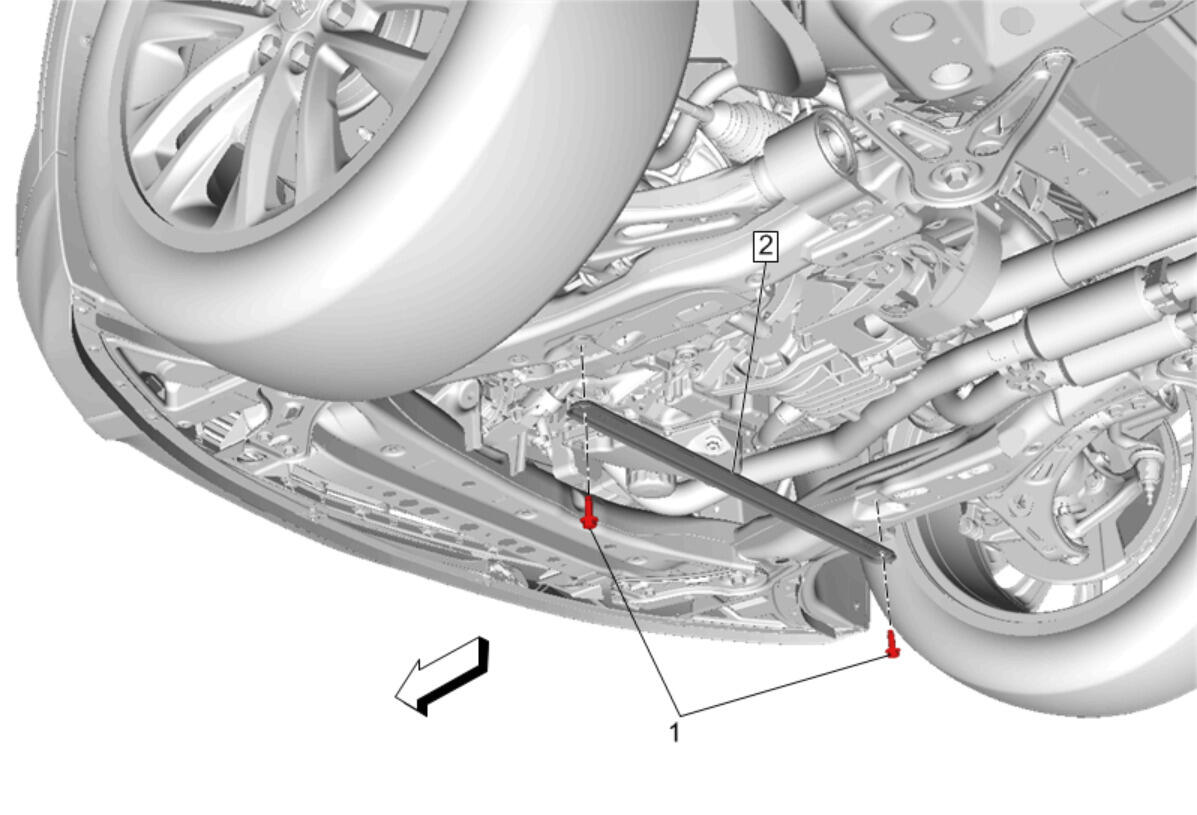

Front Cradle Brace (2) - Install - Front Cradle Brace Replacement
