Exhaust Intermediate Hanger Replacement

Courtesy of GENERAL MOTORS COMPANY

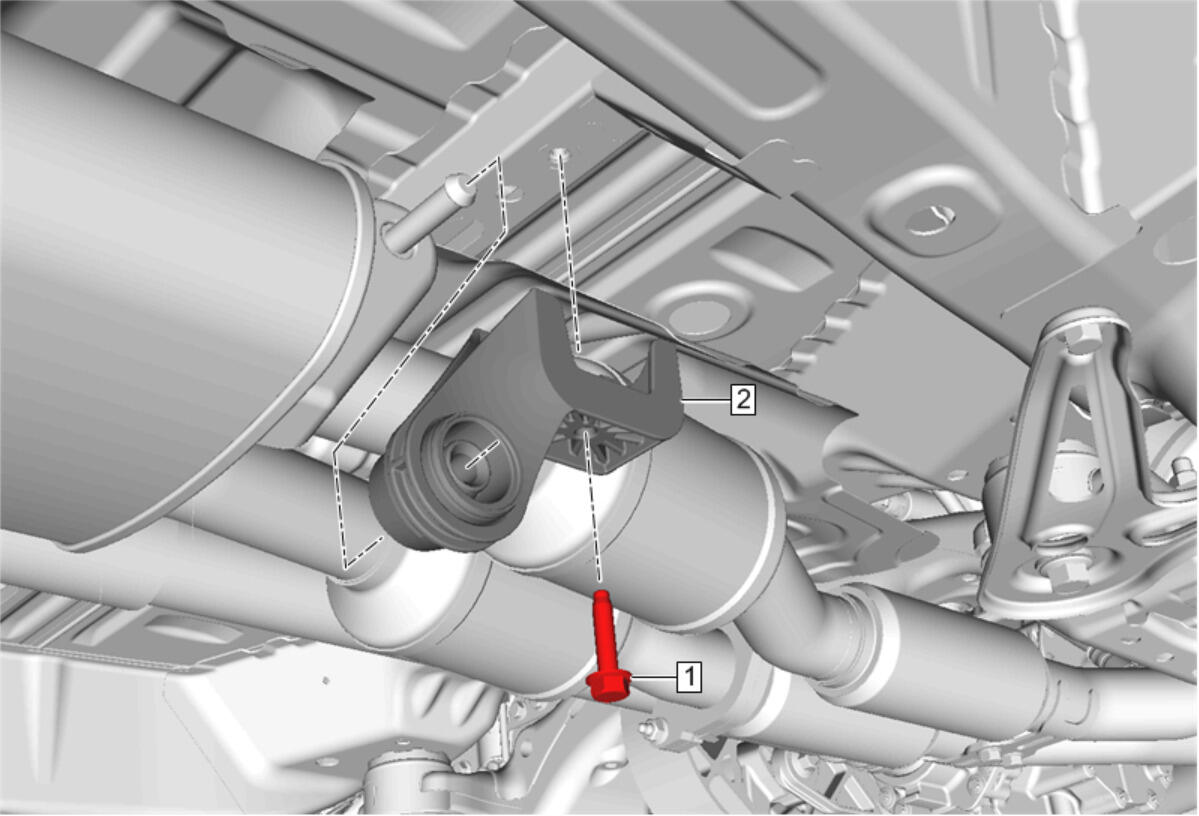

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Exhaust Intermediate Hanger Bolt CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb-ft)
2	Exhaust Intermediate Hanger
