Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

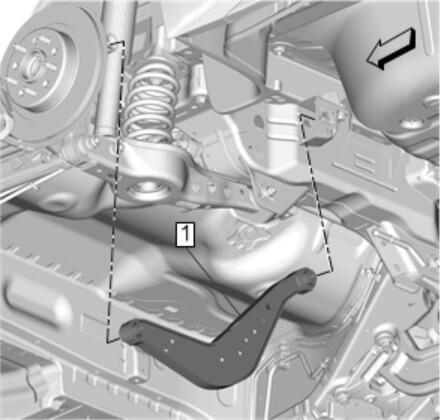

Rear Suspension Adjust Link(1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

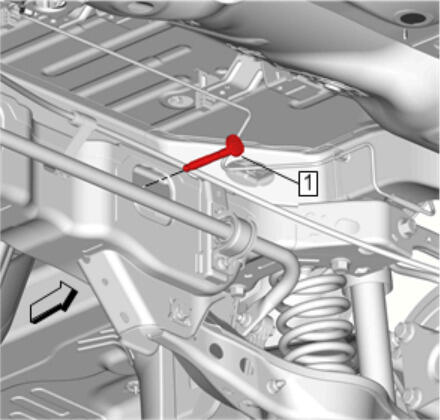

Rear Suspension Adjust Link Inner Bolt(1) - Install
Install a NEW bolt.
- CAUTION:
Refer to Fastener Caution .

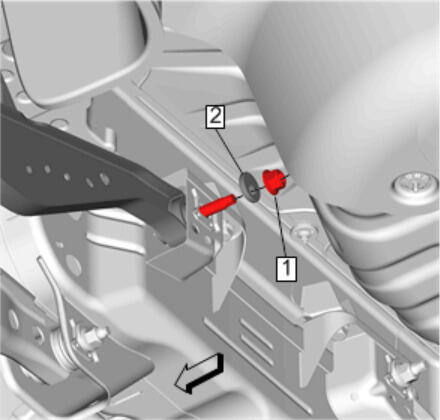

Rear Suspension Adjust Link Cam(2) - Install
- Rear Suspension Adjust Link Nut(1) - Install and tighten 90 N.m (66 lb ft)

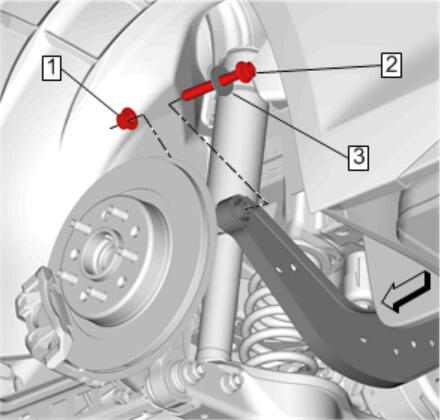

Install the rear suspension adjust link outer bolt (2) and washer (3).
Install a NEW bolt.
- Rear Suspension Adjust Link Outer Nut(1) - Install
Tighten
- First Pass: 160 N.m (118 lb ft)
- Final Pass: (90 - 105 degrees)
- Check the rear wheel alignment. Rear Toe Adjustment (GNQ)Rear Toe Adjustment (GNC)
