Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Rear Suspension Adjust Link(1) - Install
- CAUTION:
Refer to Fastener Caution .

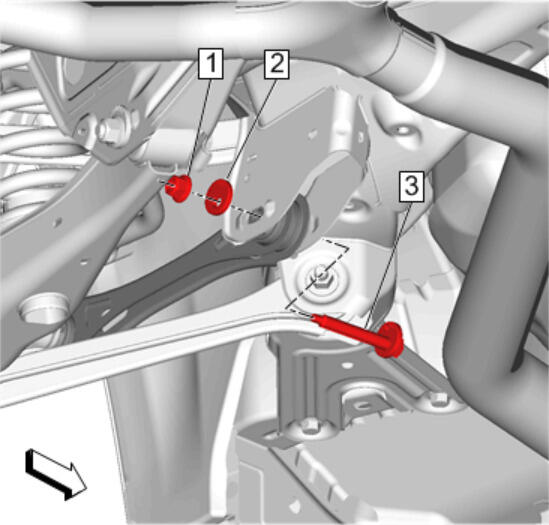

Rear Suspension Adjust Link Inner Bolt(3) - Install
- Rear Suspension Adjust Link Cam(2) - Install
- Rear Suspension Adjust Link Nut(1) - Install
Tighten
- First Pass: 80 N.m (59 lb ft)
- Final Pass: (30 - 45 degrees)

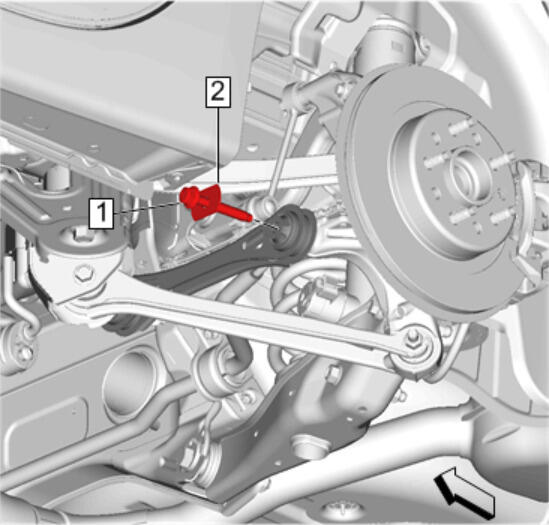

Install a NEW rear suspension adjust link bolt (1) and washer (2).
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (90-105 degrees)
CAUTION:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

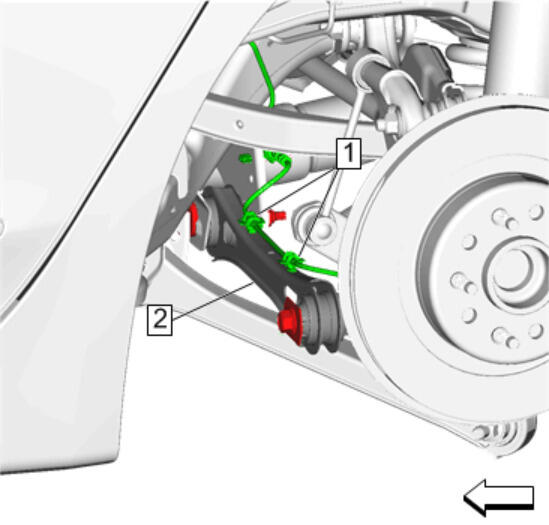

Rear Wheel Speed Sensor Harness(1)@Rear Suspension Adjust Link(2) - Install
- Check the rear toe adjustment. Rear Toe Adjustment (GNQ)Rear Toe Adjustment (GNC)
