Radio Bracket Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

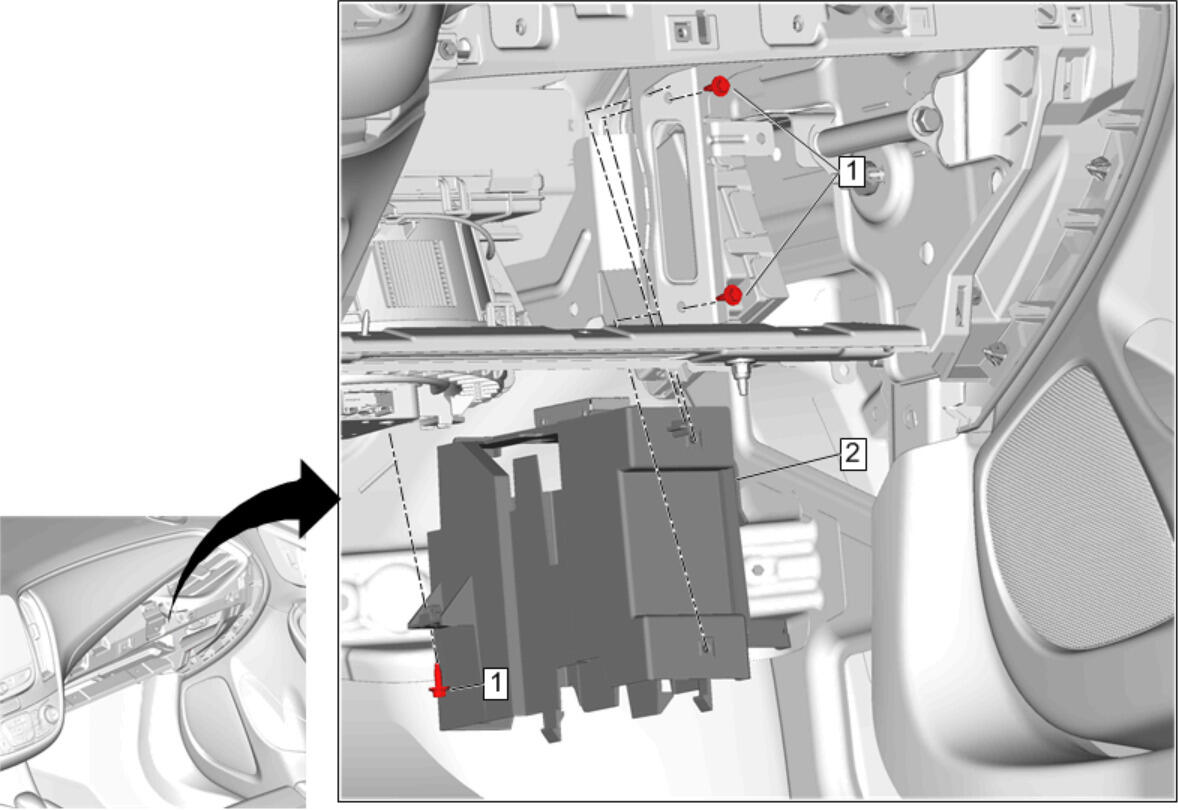

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Replacement Human Machine Interface Control Module Replacement Radio Replacement (IOS) Radio Replacement (IOT)
1	Radio Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Release the two wire harness retainers from the radio bracket. Lower and reposition the radio bracket enough to access and disconnect the electrical connector from the navigation signal splitter. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Instrument Panel Compartment Replacement
Human Machine Interface Control Module Replacement
Radio Replacement (IOS) Radio Replacement (IOT)

Radio Bracket Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure

Release the two wire harness retainers from the radio bracket.
Lower and reposition the radio bracket enough to access and disconnect the electrical connector from the navigation signal splitter.
Transfer components as necessary.
