Radio Replacement (IOS)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

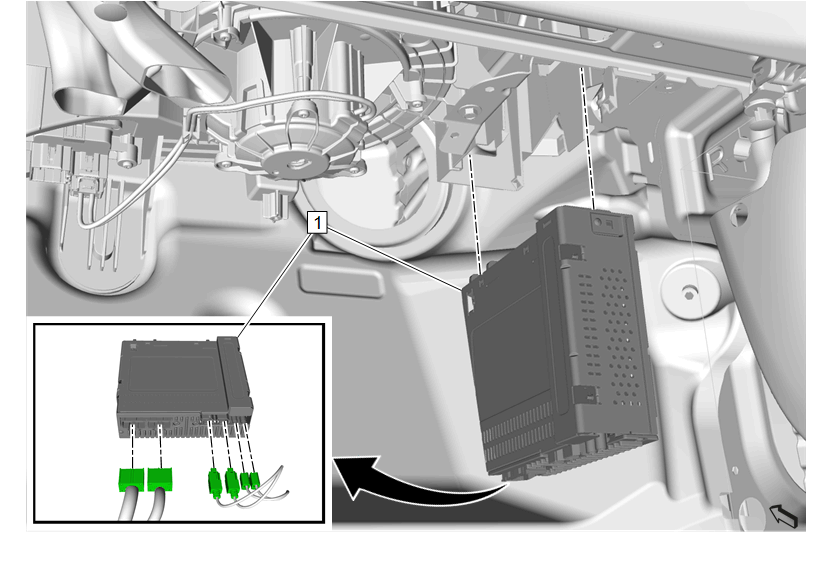

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG) Instrument Panel Lower Trim Panel Insulator Replacement
1	Radio Procedure Disconnect the electrical connectors. Unlock the retaining tabs. Control Module References - Programming and Setup

Callout

Component Name

Preliminary Procedures

BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
Instrument Panel Lower Trim Panel Insulator Replacement

Radio

Procedure

Disconnect the electrical connectors.
Unlock the retaining tabs.
Control Module References - Programming and Setup
