Steering Column Dash Outer Seal Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: The torque sensor is integral to the steering gear input shaft assembly and is not a serviceable component. Do not loosen or remove the bolts on the plastic input shaft cover. Doing so could allow moisture to pass the seal and damage the torque sensor electronics causing loss of power assisted steering. Preliminary Procedures Steering Column Dash Inner Seal Replacement Lower the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Replacement

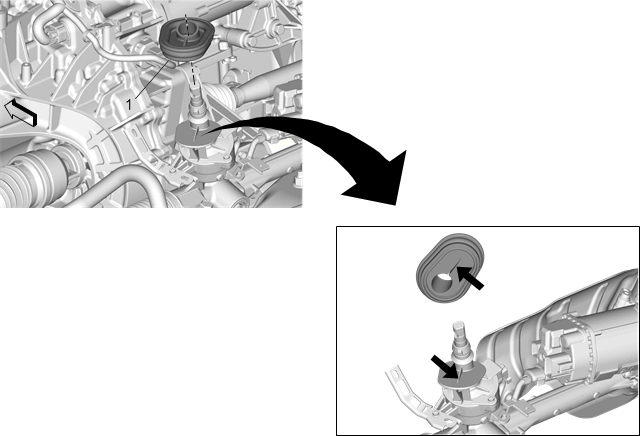

1	Steering Column Dash Outer Seal Procedure To install the steering column dash outer seal, align the slot in the seal with the raised section on the steering gear.

Callout

Component Name

CAUTION:

The torque sensor is integral to the steering gear input shaft assembly and is not a serviceable component. Do not loosen or remove the bolts on the plastic input shaft cover. Doing so could allow moisture to pass the seal and damage the torque sensor electronics causing loss of power assisted steering.

Preliminary Procedures

Steering Column Dash Inner Seal Replacement
Lower the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Replacement

Steering Column Dash Outer Seal
Procedure
To install the steering column dash outer seal, align the slot in the seal with the raised section on the steering gear.
