Steering Column Dash Inner Seal Replacement

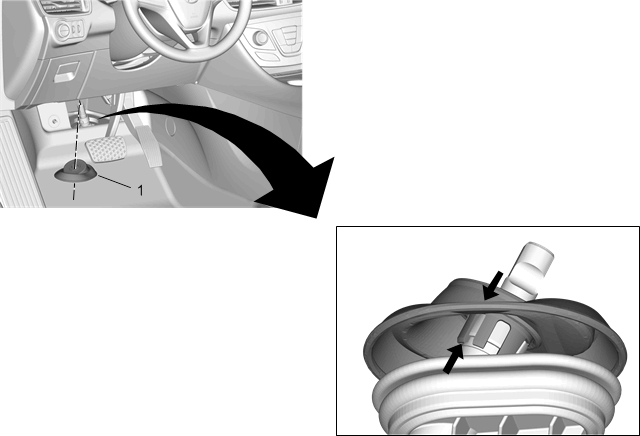

GM3924855Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intermediate Steering Shaft @ Steering Gear - Separate - Intermediate Steering Shaft Replacement
1 Steering Column Dash Inner Seal

Procedure

  1. To remove the steering column dash inner seal, lift the edge of the seal and release the plastic retaining tabs from the steering gear input shaft.
  2. To install the steering column dash inner seal, push the seal until the plastic retaining tabs engage the steering gear input shaft.
