Removal Procedure
- Instrument Panel Lower Trim Panel-Left Side - Remove - Instrument Panel Lower Trim Panel Replacement - Left Side
- Intermediate Steering Shaft - Remove - Intermediate Steering Shaft Replacement
- Turn Signal Switch Bracket - Remove - Turn Signal Switch Bracket Replacement
- Disconnect electrical connections, if applicable.
- Install tie straps as described above.

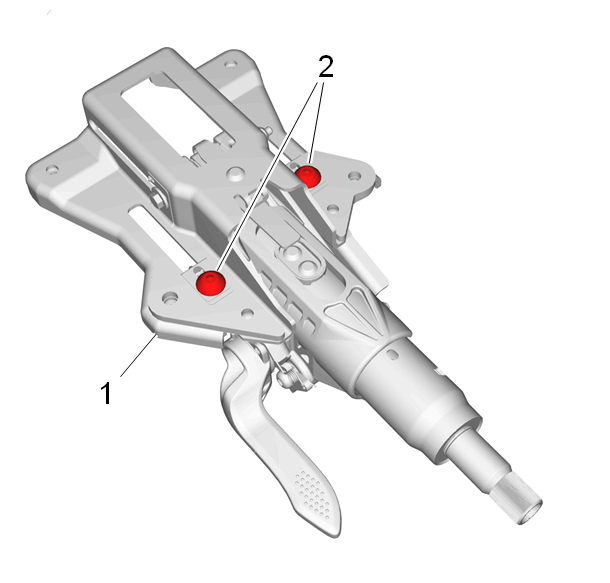

Steering Column Nut(2) - Remove and DISCARD[4x]
- Steering Column(1) - Remove
- WARNING:
The steering column tie strap bolts are torque sensitive and tightened during vehicle production. Do not loosen or tighten the tie strap bolts during service because damage to the steering column may result. A damaged steering column might lead to a vehicle malfunction and personal injury or death if the vehicle is in a crash.
Tie Strap Bolts (2) must not be loosened or tightened.
Install tie straps between the tilt lever bracket and the base of the steering column to prevent the steering column jacket from pulling apart. The tilt lever MUST be in the LOCK (FULL UP) position during the steering column removal and installation to ensure that the tilt lever bracket remains rigid. Also install tie straps around the tilt lever and the steering column jacket to keep the tilt lever in the LOCK position. Do not bend the steering column energy absorbing straps located on the upper steering column mounting bracket.
