Turn Signal Switch Bracket Replacement

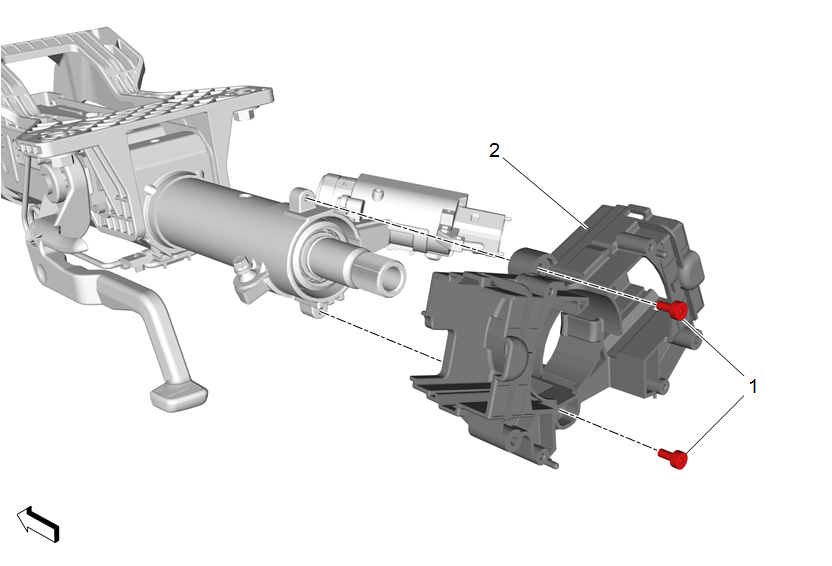

GM4862100
Callout Component Name

Preliminary Procedures

  1. Steering Angle Sensor Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Washer Switch Replacement , Windshield Wiper and Washer Switch Replacement
1 Turn Signal Switch Bracket Bolt[2x]
CAUTION:

Fastener Caution


Tighten
15N.m (11 lb ft)
2 Turn Signal Switch Bracket
