Outside Rearview Mirror Replacement

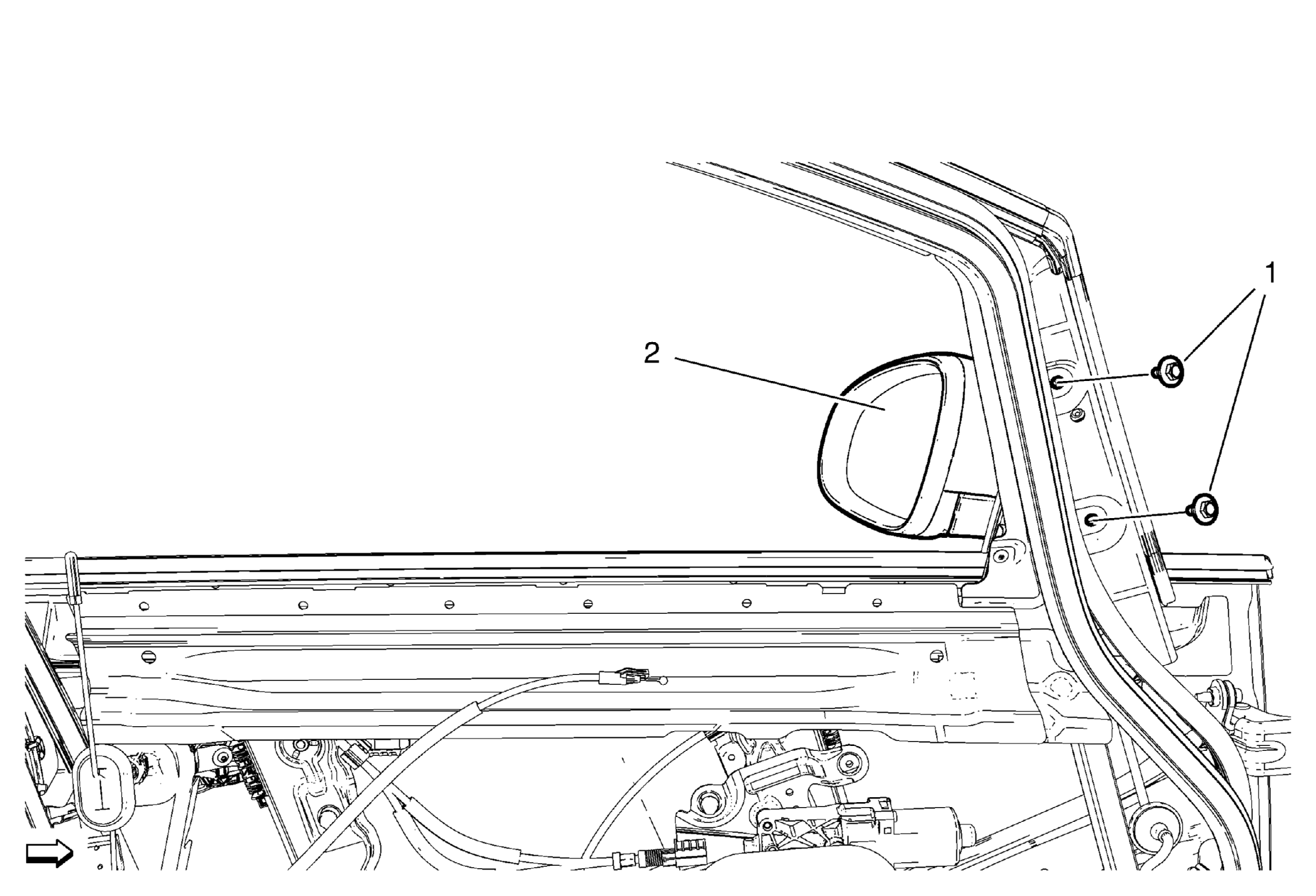

GM2190548

Callout

Component Name

Preliminary Procedures
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

1

Outside Rearview Mirror Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Outside Rearview Mirror

Procedure

Disconnect electrical connector.
Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
Remove the outside rearview mirror housing. Refer to Outside Rearview Mirror Housing Replacement .
Remove the outside rearview mirror actuator. Refer to Outside Rearview Mirror Actuator Replacement .
