Outside Rearview Mirror Glass Replacement

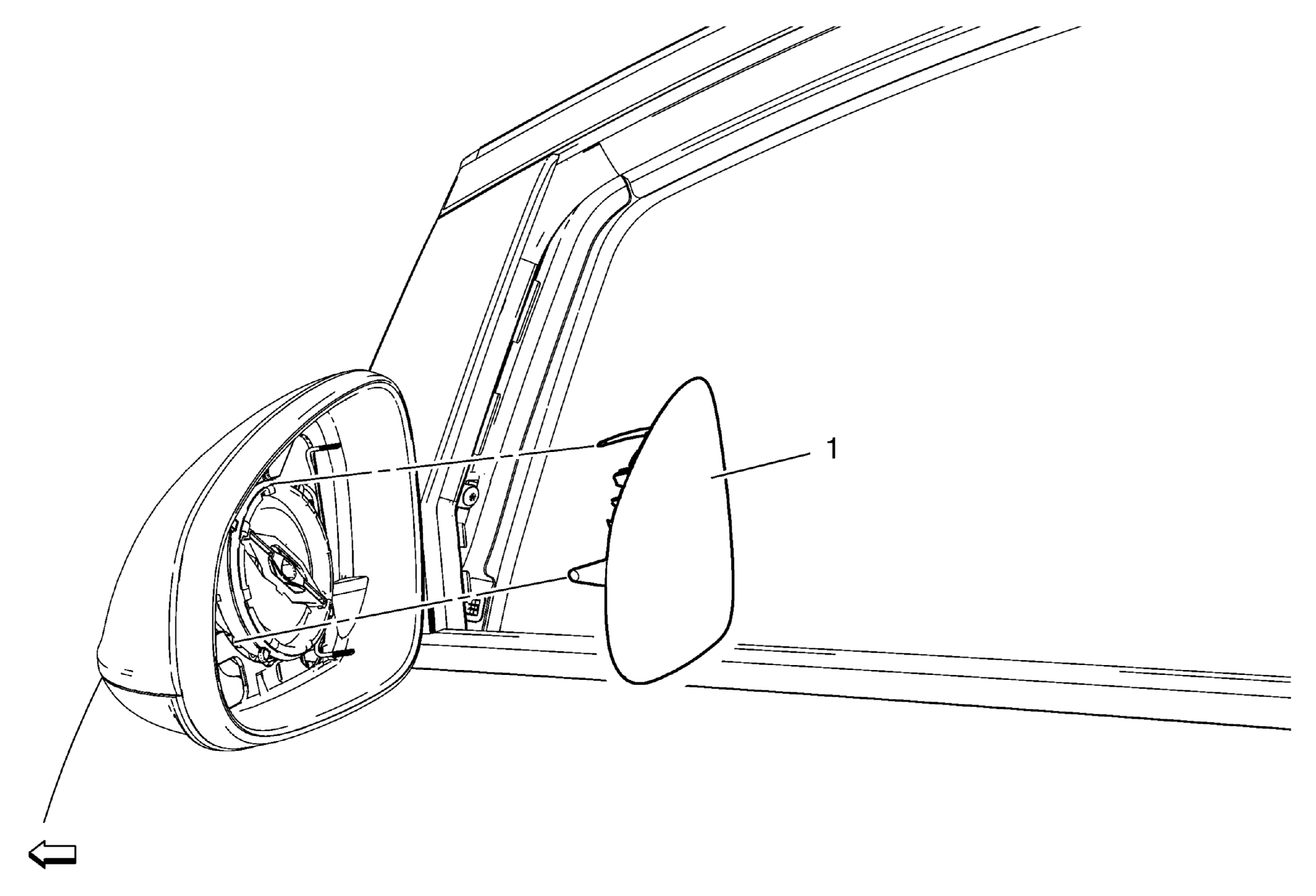

GM2190549
Callout Component Name
1 Outside Rearview Mirror Glass
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Procedure

  1. Release the mirror glass backing from the mirror housing by pulling outward.
  2. Disconnect the power wire harness electrical connector.
