Sunroof Frame Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

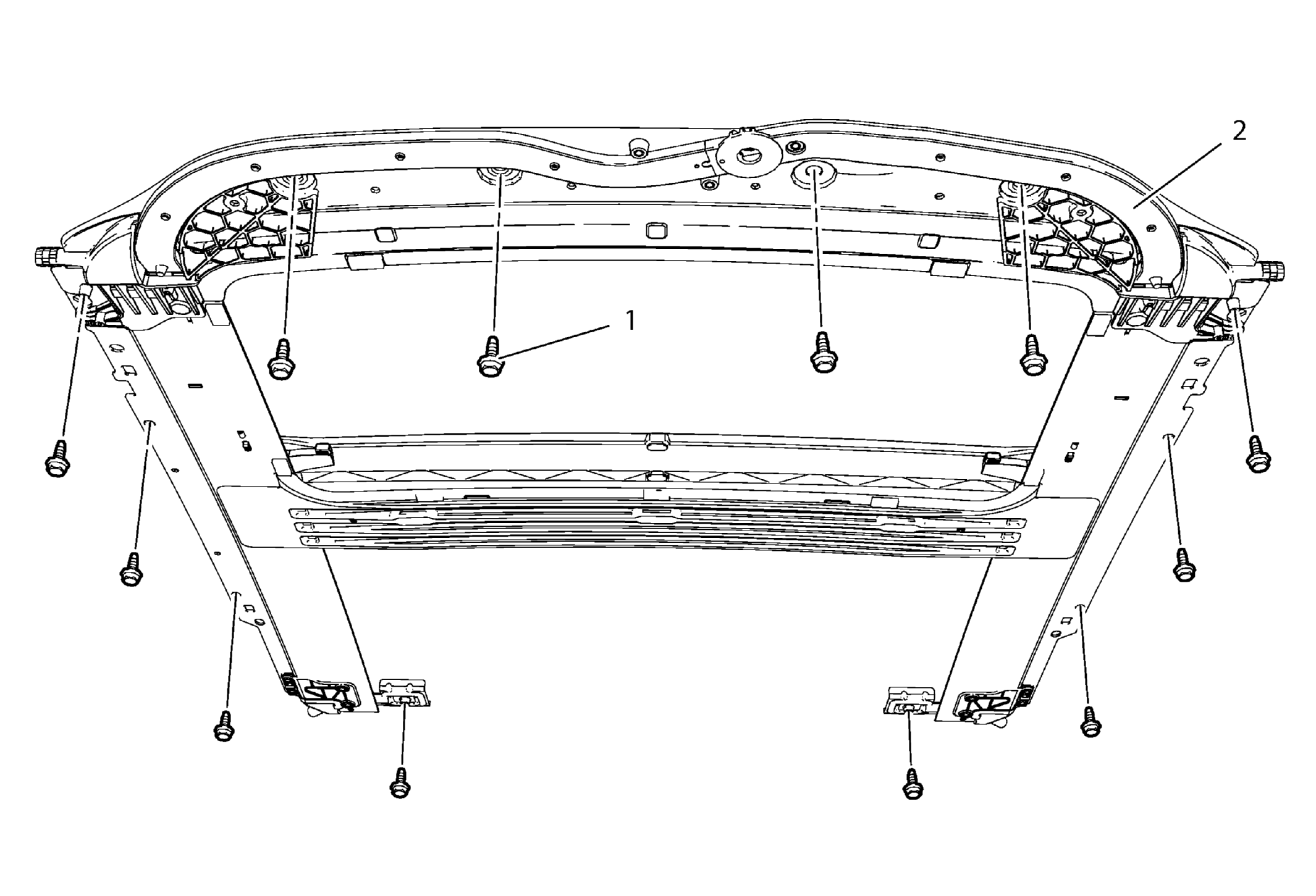

Fig 1: Identifying Sunroof Frame & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) . Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the sunroof air deflector cover. Refer to Sunroof Air Deflector Cover Replacement . Remove the sunroof sunshade. Refer to Sunroof Sunshade Replacement . Remove the sunroof window motor. Refer to Sunroof Window Motor Replacement . Remove the sunroof air deflector. Refer to Sunroof Air Deflector Replacement . Remove the Sunroof Housing Drain Gutter. Refer to Sunroof Housing Drain Gutter Replacement . Disconnect the Front and Rear Drain Hose.
1	Sunroof Module Bolt (Qty: 12) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Sunroof Frame Procedure With the aid of an assistant, lower the sunroof frame and remove the sunroof frame out through the passenger side door.

Callout

Component Name

Preliminary Procedures

Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the sunroof air deflector cover. Refer to Sunroof Air Deflector Cover Replacement .
Remove the sunroof sunshade. Refer to Sunroof Sunshade Replacement .
Remove the sunroof window motor. Refer to Sunroof Window Motor Replacement .
Remove the sunroof air deflector. Refer to Sunroof Air Deflector Replacement .
Remove the Sunroof Housing Drain Gutter. Refer to Sunroof Housing Drain Gutter Replacement .
Disconnect the Front and Rear Drain Hose.

Sunroof Module Bolt (Qty: 12)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Sunroof Frame
Procedure
With the aid of an assistant, lower the sunroof frame and remove the sunroof frame out through the passenger side door.
