Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

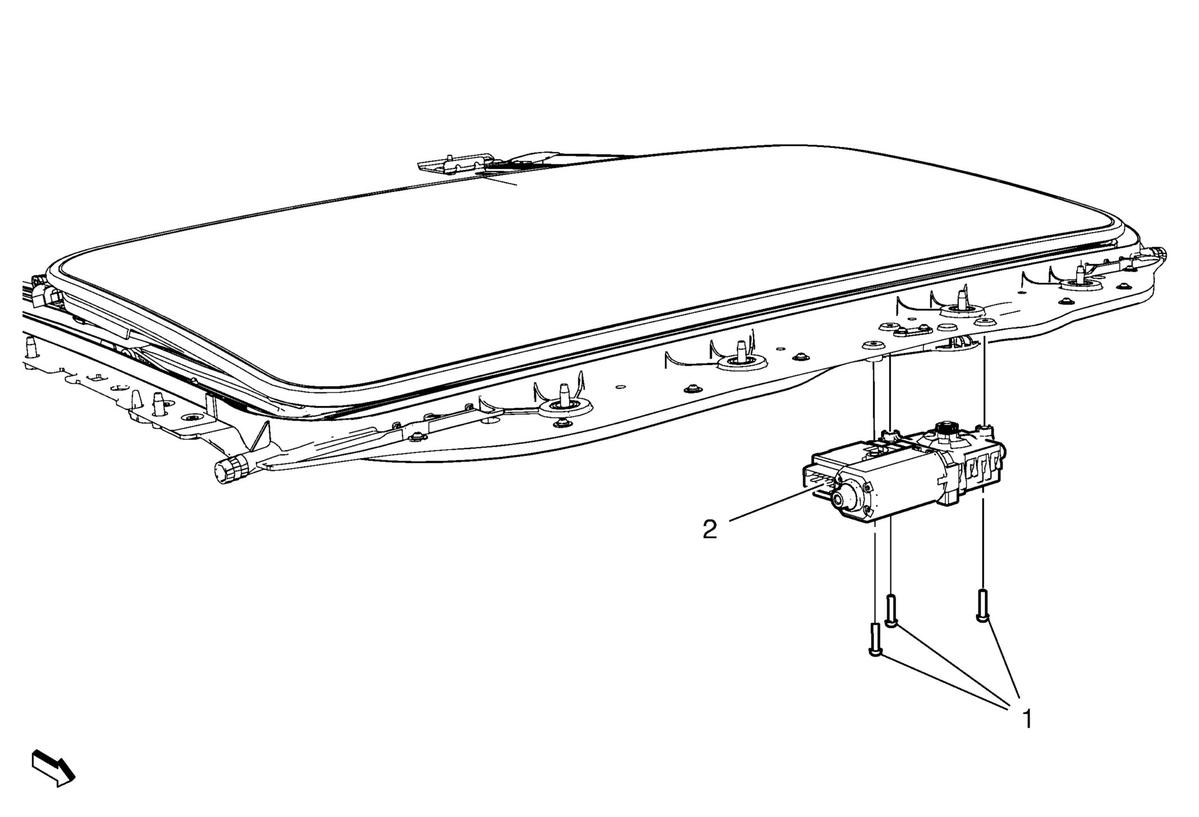

Fig 1: Identifying Sunroof Window Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
1	Sunroof Window Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 4 (36 lb in)
2	Sunroof Window Motor Procedure Disconnect the electrical connector. After repairs or replacement, initialize the sunroof motor. Refer to Sunroof Motor/Actuator Initialization/Teach Process . Verify the operation of the sunroof before installing the headliner.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .

Sunroof Window Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
4 (36 lb in)

Sunroof Window Motor

Procedure

Disconnect the electrical connector.
After repairs or replacement, initialize the sunroof motor. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
Verify the operation of the sunroof before installing the headliner.
