Turn Signal Switch Bracket Replacement

Preliminary Procedures

1. Remove the steering wheel. Refer to Steering Wheel Replacement .
2. Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement .

Procedure

1. Disconnect any electrical connectors as necessary.

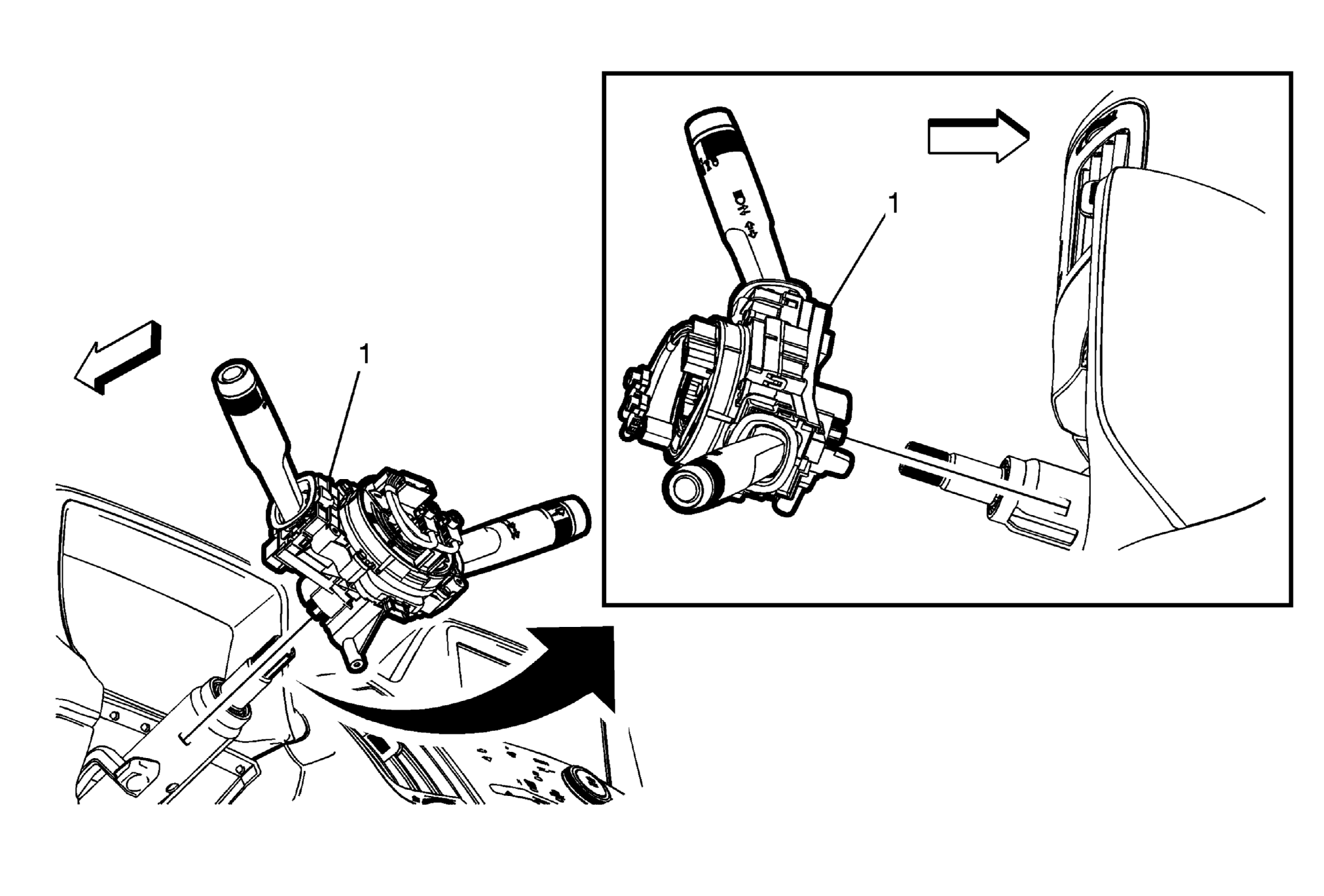

2. Release the 2 tabs in order to release the turn signal switch bracket from the steering column.
3. Transfer any parts as necessary. Refer to the following procedures:
   • Turn Signal Switch Replacement
   • Windshield Wiper and Washer Switch Replacement
   • Steering Wheel Airbag Coil Replacement
   • Steering Angle Sensor Replacement
