Steering Wheel Replacement

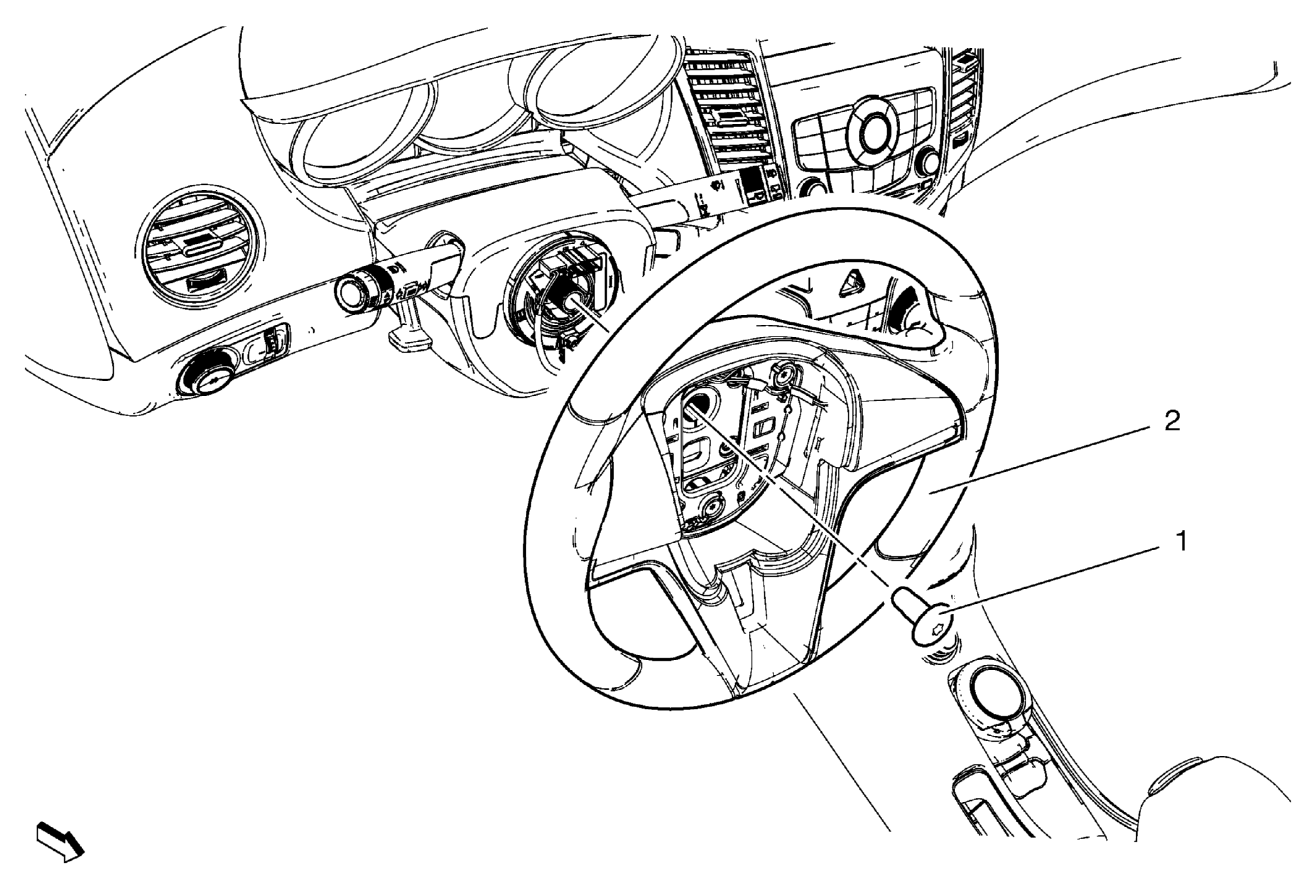

Fig 1: View Of Steering Wheel & Bolt
GM2027603Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Replacement

Callout Component Name
Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Clean thread of the bolt.
  2. Apply locking compound to the thread. Refer to Adhesives, Fluids, Lubricants, and Sealers

Tighten
30 N.m (23 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect electrical connectors as needed.
  2. Remove the steering wheel carefully.
