Engine Coolant Fan Motor Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

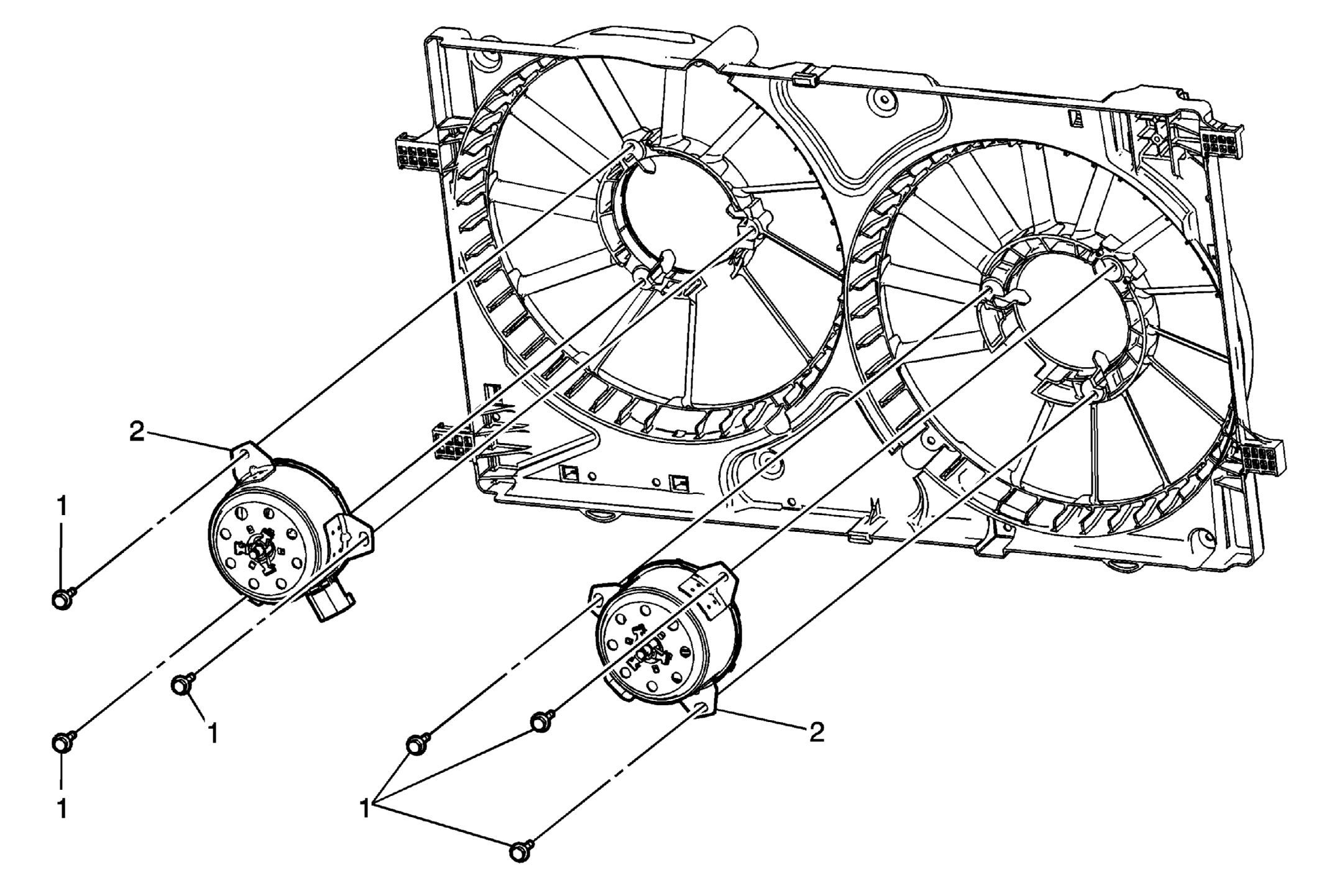

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the engine coolant fan. Refer to Engine Coolant Fan Replacement . |
|
| 1 | Engine Coolant Fan Motor Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Engine Coolant Fan Motor (Qty: 2) |
