Engine Coolant Fan Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

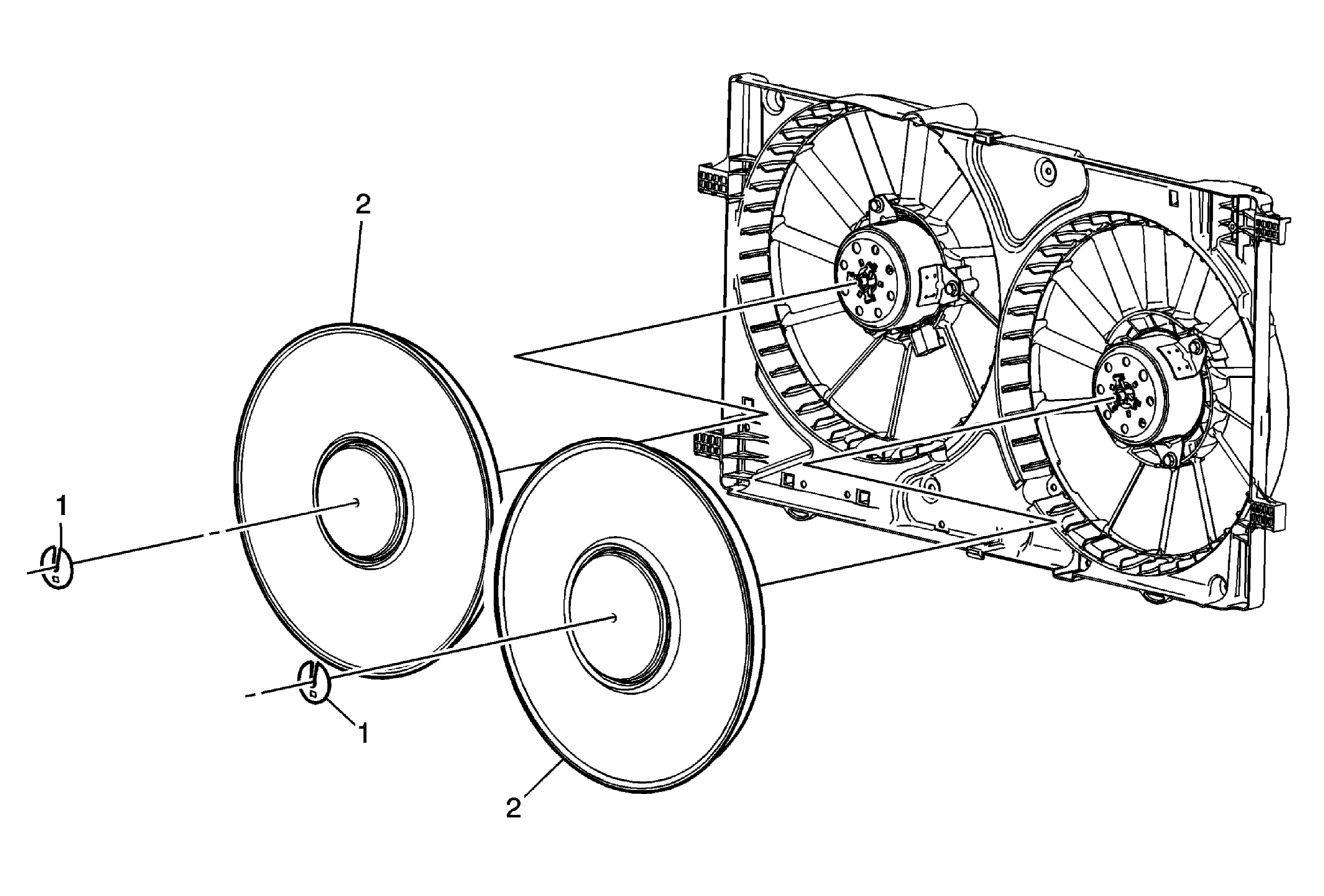

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement . |
|
| 1 | Engine Coolant Fan Retainer (Qty: 2) |
| 2 | Engine Coolant Fan (Qty: 2) |
