Turn Signal Multifunction Switch Replacement

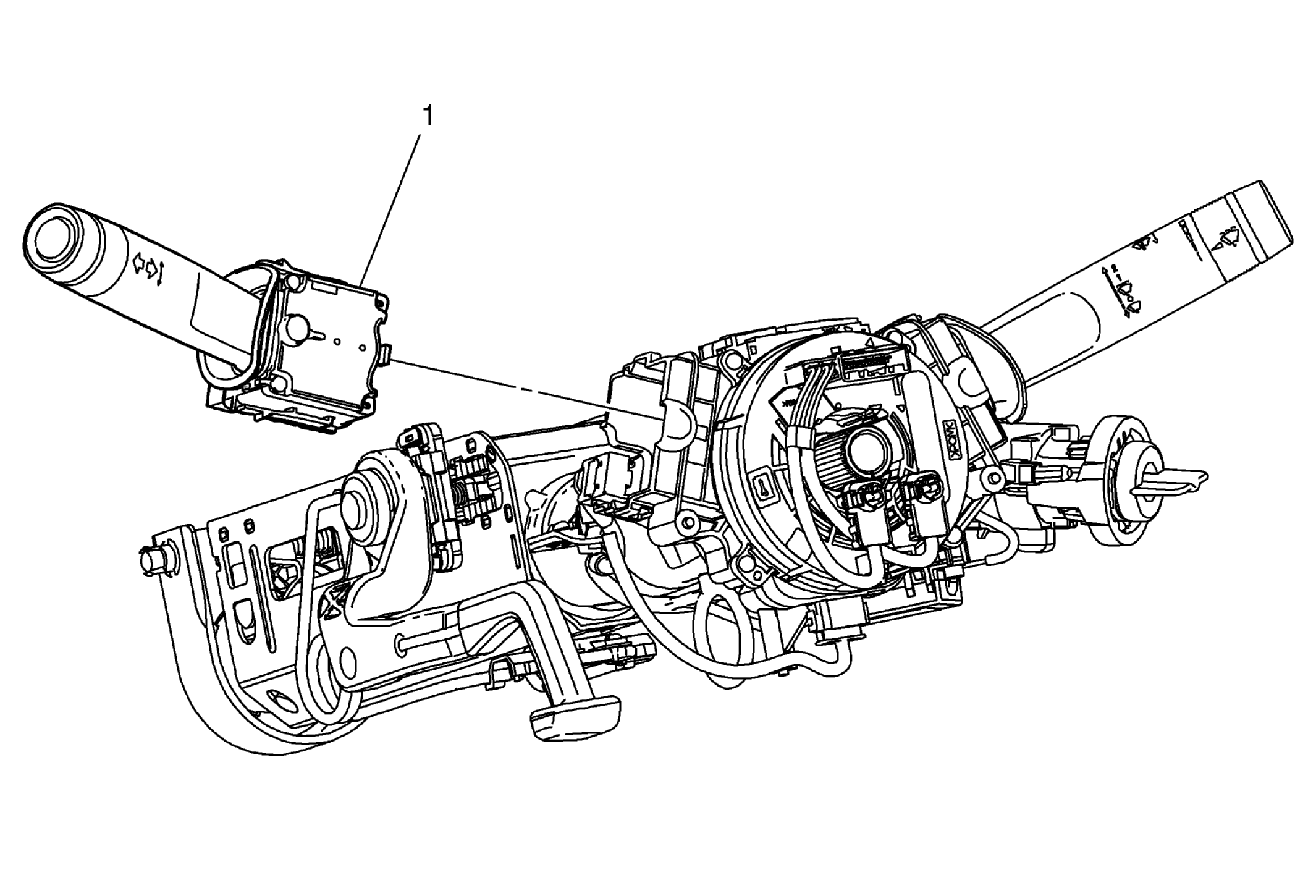

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors. Depress the locking tabs to remove the turn signal multifunction switch.

Callout

Component Name

Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Turn Signal Multifunction Switch

Procedure
