Steering Column Trim Cover Replacement
Steering Column Trim Cover Replacement

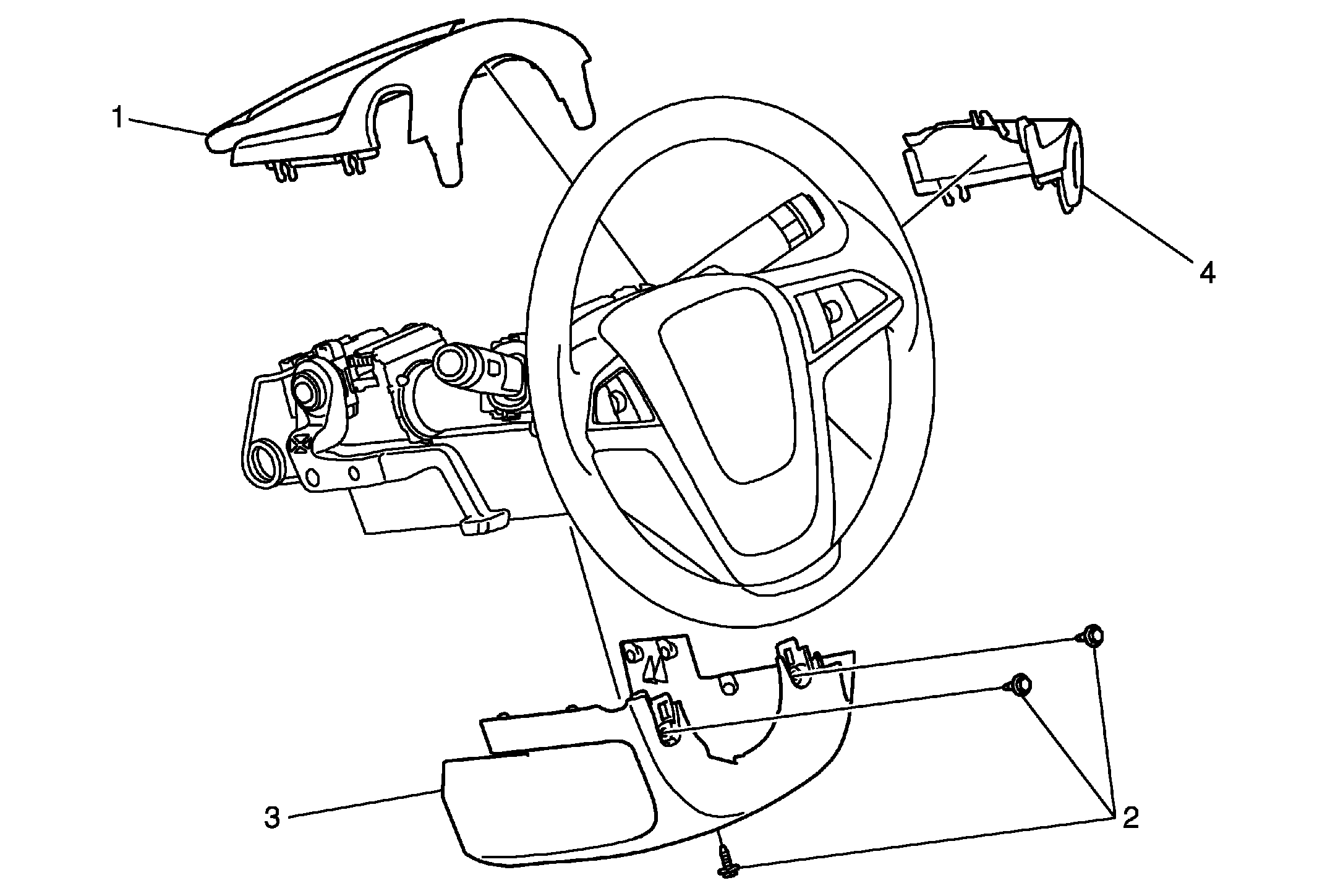

| Callout | Component Name |
|---|---|
| Preliminary Procedures Telescope the steering column to its most extended position. |
|
| 1 | Instrument Panel Steering Column Upper Trim Cover Procedure Turn the steering wheel for access. |
| 2 | Instrument Panel Steering Column Lower Trim Cover Fastener (Qty: 3) Procedure Turn the steering wheel to access the upper fasteners, |
| 3 | Instrument Panel Steering Column Lower Trim Cover |
| 4 | Ignition Lock Cylinder Bezel |
