Generator Control Module Coolant Pump Replacement

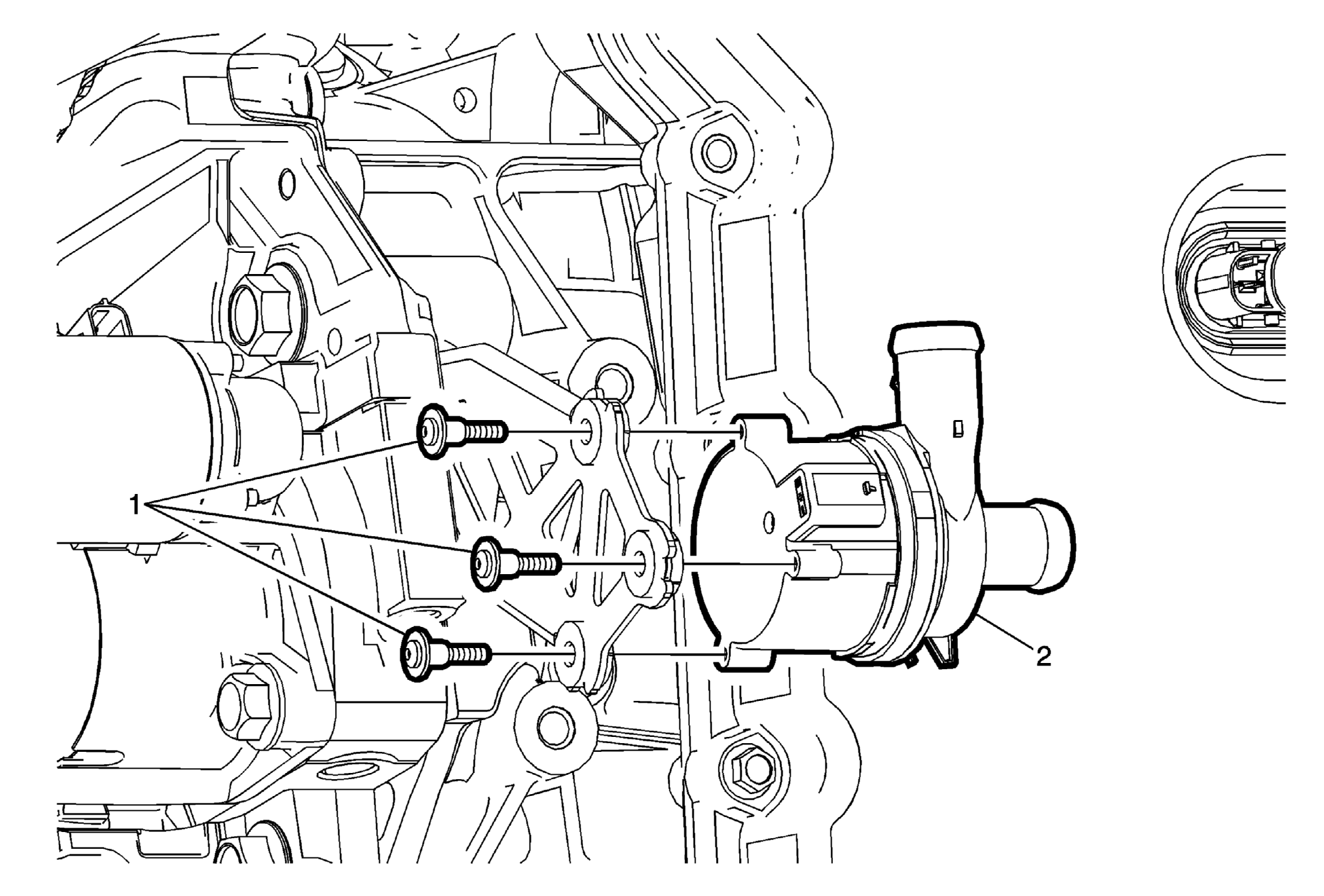

Fig 1: Generator Control Module Coolant Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove intake Manifold cover. Refer to Intake Manifold Cover Replacement Remove generator Control module coolant outlet hose.Refer to. Generator Control Module Coolant Outlet Hose Replacement
1	Generator Control Module Coolant Pump Fasteners(Qty3) CAUTION: Refer to Fastener Caution .
2	Generator Control Module Coolant Pump

Callout

Component Name

Preliminary Procedures

Remove intake Manifold cover. Refer to Intake Manifold Cover Replacement
Remove generator Control module coolant outlet hose.Refer to. Generator Control Module Coolant Outlet Hose Replacement

Generator Control Module Coolant Pump Fasteners(Qty3)

CAUTION:

Generator Control Module Coolant Pump
