Generator Control Module Coolant Outlet Hose Replacement

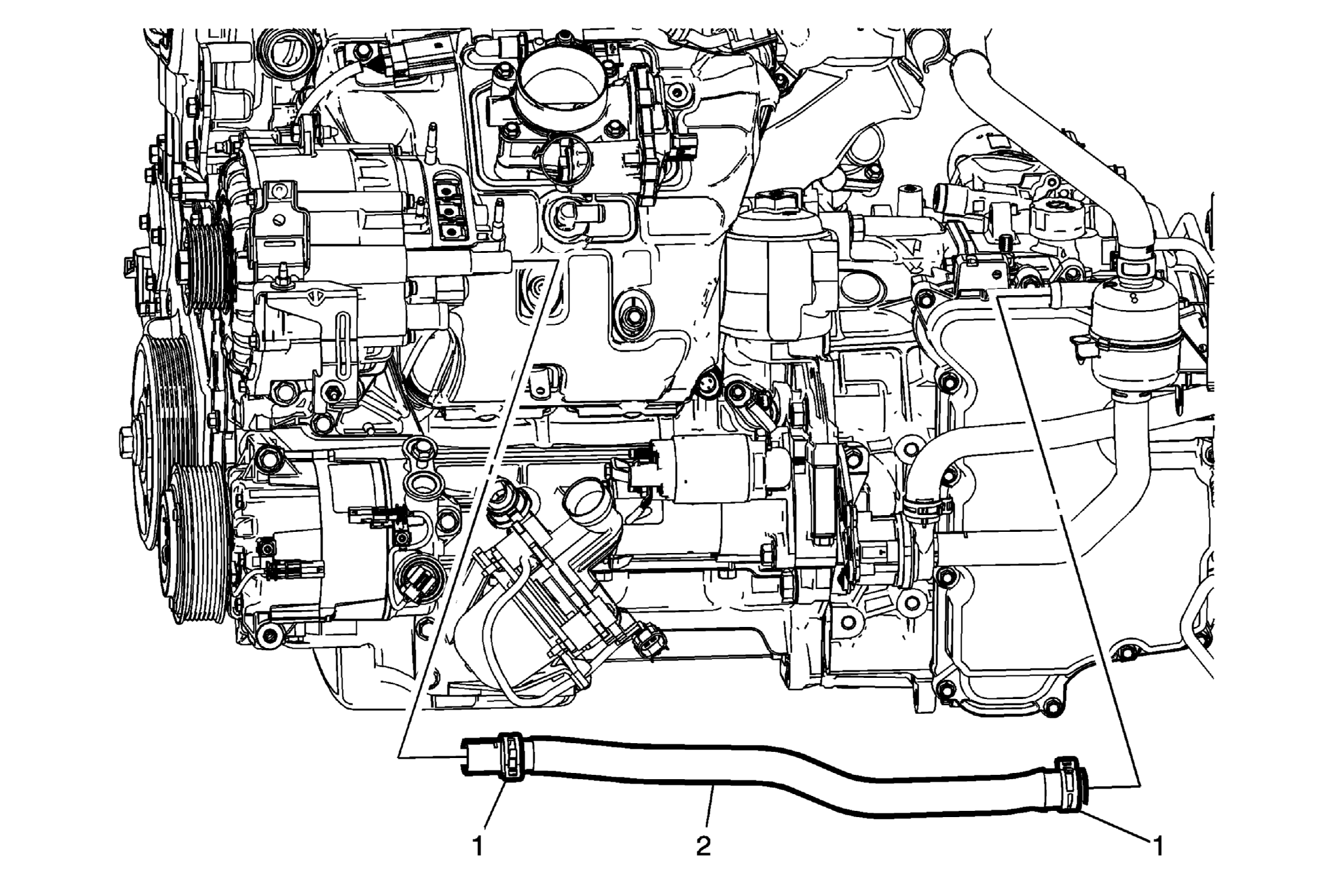

Fig 1: Generator Control Module Coolant Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Outlet Hose Replacement

Callout	Component Name
Preliminary Procedures  Remove intake Manifold cover. Refer to Intake Manifold Cover Replacement
1	Clamps(Qty2)
2	Generator Control module Coolant Outlet Hose
