Remove left retaining plate
Remove left retaining plate

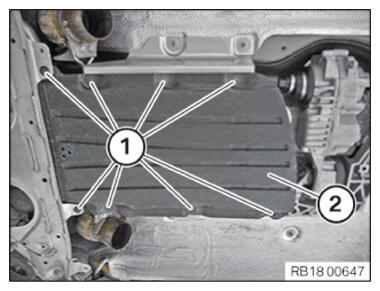

Loosen screws
(1)
.
Remove the rear underbody protection
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

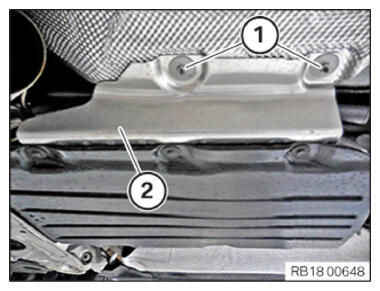

Loosen nuts
(1)
.
Remove heat shield
(2)
on right from transmission.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
