Installing the left oxygen sensor monitor
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
- Lightly and evenly lubricate the thread of monitoring oxygen sensor.CONSUMABLE SPECIFICATION

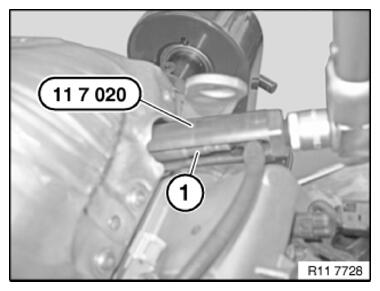

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only. 3g, Bag 83192158851 100 g, Tube 83192158852 5g, TU* 83230140233 - Tighten the oxygen sensor monitor (1) with the special tool 0 491 074 (11 7 020).

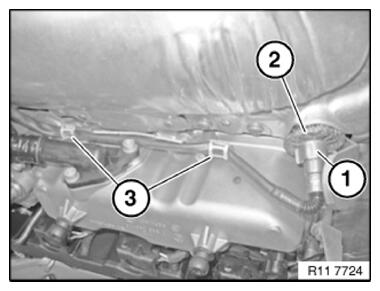

- Position the heat protection wire ring (2) over the monitoring oxygen sensor.
- Affix the retaining clip (1) .
- Connect the connector of the monitoring oxygen sensor.NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.- Route all cables without abrasions, do not trap and crush.
- Affix the oxygen sensor cable in the retaining clips (3) .
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
- Lightly and evenly lubricate the thread of monitoring oxygen sensor.CONSUMABLE SPECIFICATION
Brake block paste
* TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.3g, Bag 83192158851 100 g, Tube 83192158852 5 g, TU* 83230140233 - Tighten the oxygen sensor monitor (1) with the special tool 0 491 074 (11 7 020) .
- Position the heat protection wire ring (2) over the monitoring oxygen sensor.
- Affix the retaining clip (1) .
- Connect the connector of the monitoring oxygen sensor.NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.- Route all cables without abrasions, do not trap and crush.
- Affix the oxygen sensor cable in the retaining clips (3) .
