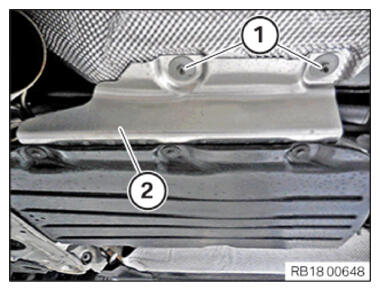

Install left retaining plate
- Install retaining plate (2) on right on transmission.
- Tighten nuts (1)
.TIGHTENING TORQUE SPECIFICATIONS

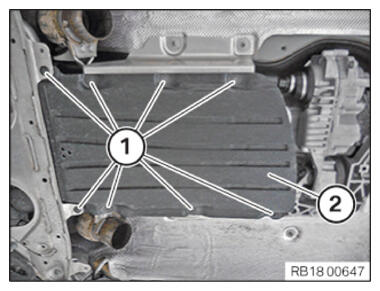

Retaining plates for vehicle underbody cover Sheet metal nut/plastic nut Replace nuts. Tightening torque 3 Nm - Install the rear underbody protection (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Undershield screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm
