Removing And Installing Engine Compartment Lid
Attention!
Danger of injury!
Use suitable tool to support bonnet in the fully opened position.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Attention!
These instructions apply only to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to surrounding texts on KSD CD (flat rate unit number 41 61 000).
Necessary preliminary tasks:
- Release all washer jets of the window washer system from the engine compartment lid; refer to REMOVING AND INSTALLING/RENEWING ALL WASHER JETS OF WINDSCREEN WASHER SYSTEM .
Removal:

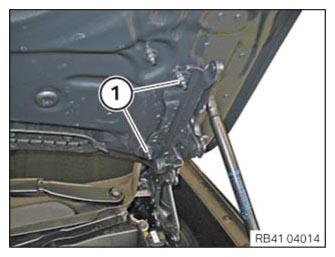

Release nuts (1) on left and right.
Remove bonnet.
Installation:
Install engine compartment lid with a second person helping. Tighten the nuts (1) on left and right.
Tightening torque: refer to ENGINE COMPARTMENT LID .
Installation note:
Position the bonnet after having highlighted the screw marks on the hinge.
If necessary, adjust ENGINE COMPARTMENT LID .
Required reworking:
- Install all washer jets of the window washer system on the engine compartment lid; refer to REMOVING AND INSTALLING/RENEWING ALL WASHER JETS OF WINDSCREEN WASHER SYSTEM .
