Adjusting Bonnet

WARNING: Danger of injury! The battery earth lead must be disconnected on vehicles with active pedestrian protection! Refer to DISCONNECTING AND CONNECTING BATTERY EARTH LEAD .

Read contents of BODY, GENERAL .

The gap dimensions specified serve as the basis for the adjusting procedure; refer to GAP DIMENSIONS, BODY .

Minor corrections through straightening work are permitted if the existing range of adjustments are not sufficient.

Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate color.

Necessary preliminary tasks:

Vehicles with active pedestrian protection only: Clamp off battery earth lead; refer to DISCONNECTING AND CONNECTING BATTERY EARTH LEAD .

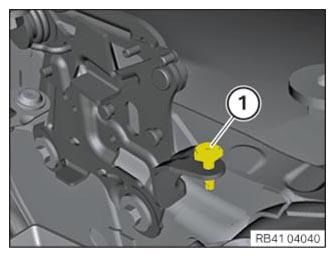

NOTE: Stop screw must not be damaged or missing. If necessary, replace engine compartment lid hinge.
The stop screw is preset and must not be used to adjust the engine compartment lid.

G12956179

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) of hinges on left and right.

Tightening torque: refer to ENGINE COMPARTMENT LID .

NOTE: If the adjustment range in the longitudinal direction is not sufficient, slacken screws on body and slide hinge (refer to the appropriate service information )

G12956175

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust engine compartment lid laterally and in longitudinal direction.

Strikers must snap into place in engine compartment lid catch.

G12956181

Courtesy of BMW OF NORTH AMERICA, INC.

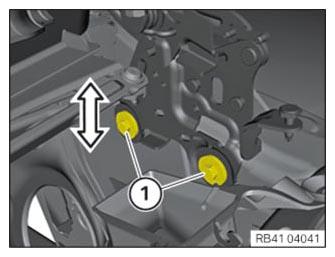

Height adjustment at hinge:

Slacken screws (1) and adjust engine compartment lid.

Tightening torque: refer to ENGINE COMPARTMENT LID .

NOTE: For better understanding; the active pedestrian protection is shown here without actuator.

G12956182

Courtesy of BMW OF NORTH AMERICA, INC.

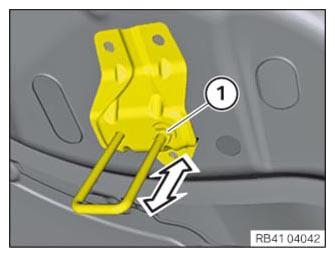

Height adjustment at strikers:

Set the height by twisting the nut (1).

Adjust stop pad; refer to ADJUSTING/REPLACING BUMP STOPS .

NOTE: The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.
Incorrect adjustment results in either wobbling of the bonnet or sluggish unlocking.

G12956183

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Check function of retaining hook.

After Installation note:

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
If necessary, adjust front side panels.
