Thrust Line/Thrust Angle: Notes

The Thrust Line is represented by an imaginary line that bisects the rear toe angle. This angle represents the overall "direction" in which the rear wheels are pointing. The thrust angle is the difference between the Geometric Axis and the Thrust Line. The optimum Thrust Angle is Zero Degrees, any deviation from this will affect the position of the steering wheel.

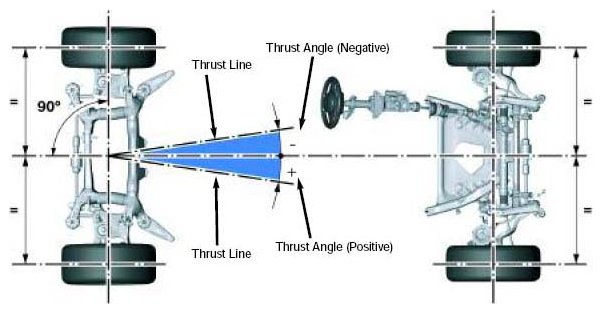

Fig 1: Identifying Thrust Line/Thrust Angle

Courtesy of BMW OF NORTH AMERICA, INC.
