Momentary/Constant B as an Input/Output Signal

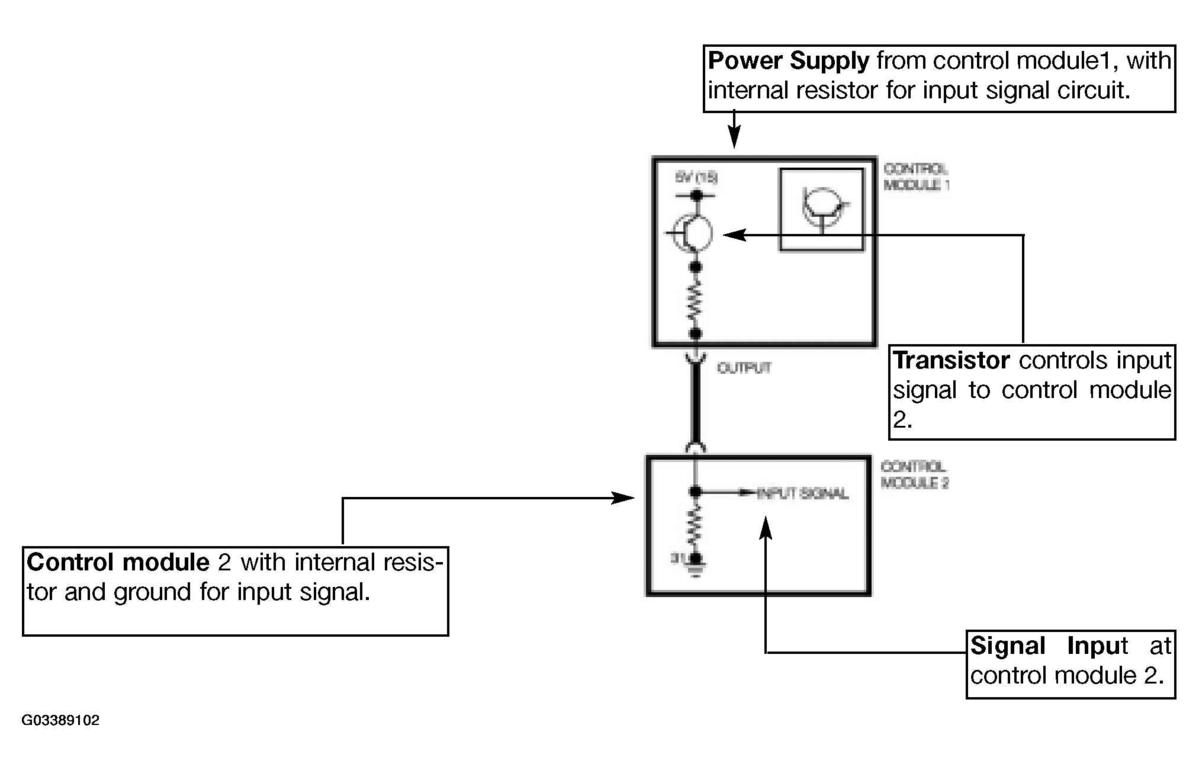

Fig 1: Identifying Momentary/Constant B As An Input/Output Signal Function

Courtesy of BMW OF NORTH AMERICA, INC.

Typical Application of Momentary/Constant B ⁺  as an Input/Output Signal:

• OBC Code Signal to DME.
• A/C Signal to DME.
