32 32 001 Replacing complete steering lock

Remove upper steering spindle bearing, refer to 32 31 151 REPLACING UPPER STEERING SPINDLE BEARING .

Remove upper section of steering column trim, refer to 32 31 003 REPLACING UPPER SECTION OF STEERING COLUMN TRIM .

Remove ring antenna.

Remove bracket for switches (indicators/wipers).

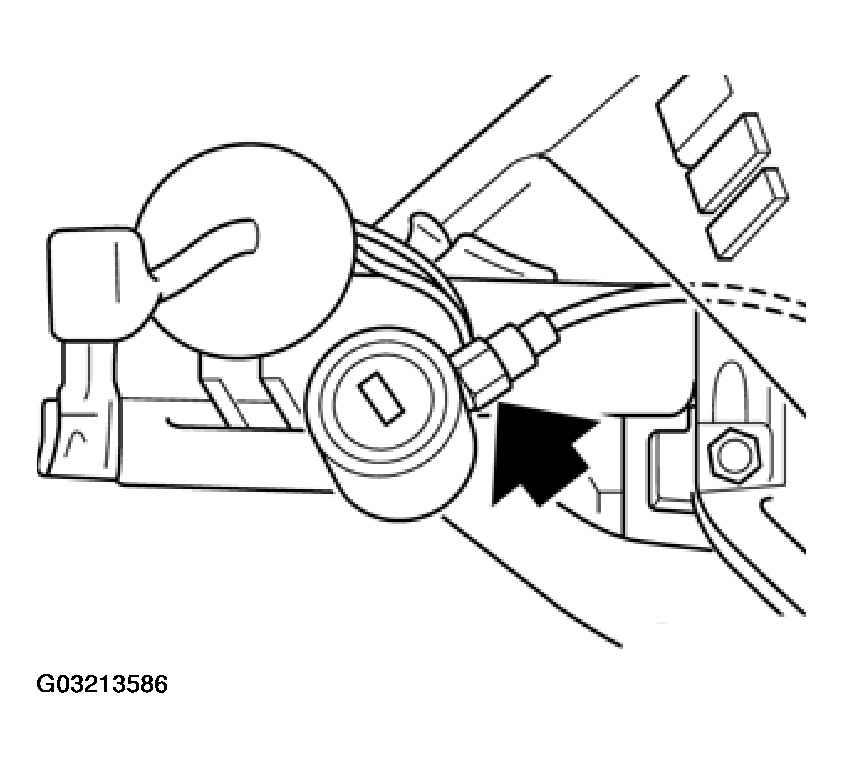

If necessary, remove cable for Interlock.

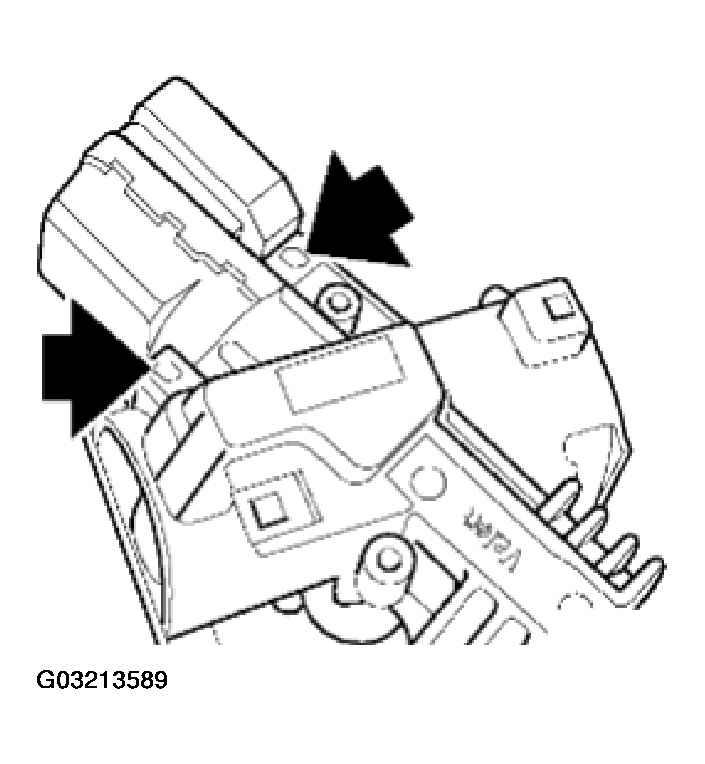

Unfasten screw and lift off bracket for wiring harness.

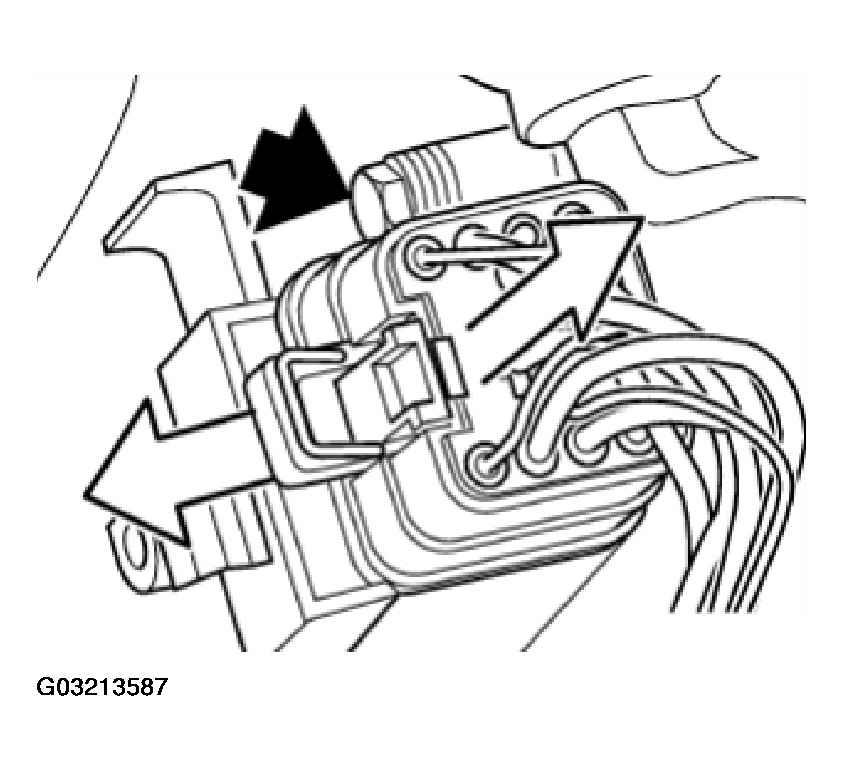

Unlock connector from ignition starter switch and remove.

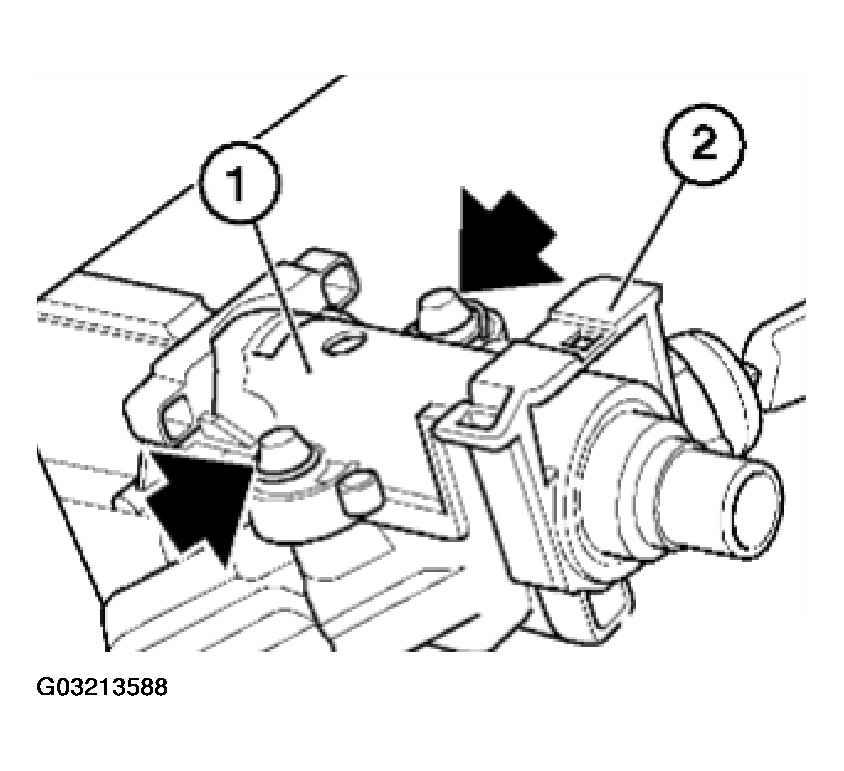

Unfasten shear-off screw with tool, e.g. chisel. Remove plate (1) and steering lock (2).

Installation:

1. Tighten new shear-off screws to shearing point.
   Fig 3: Removing Plate And Steering Lock

   Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock cylinder and install in new steering lock, refer to 32 32 050 REMOVING AND INSTALLING OR REPLACING STEERING-LOCK CYLINDER .

Remove retaining paint, unscrew and remove grub screws and fit ignition starter switch to new steering lock.

Installation:

1. Secure headless screws with varnish.
   Fig 4: Installing Headless Screws

   Courtesy of BMW OF NORTH AMERICA, INC.
