32 31 003 Replacing upper section of steering column trim

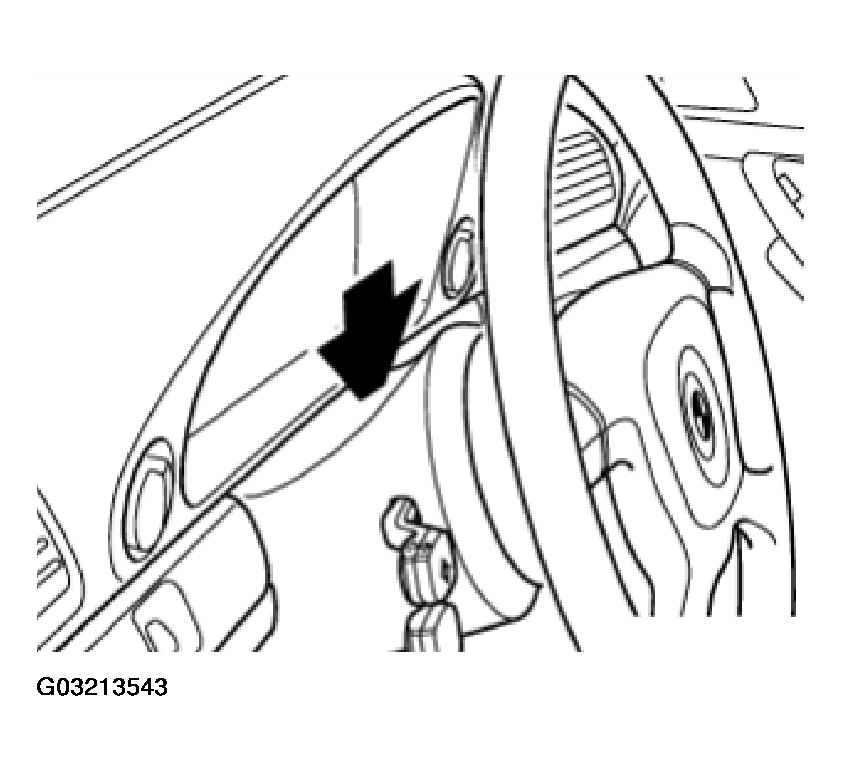

Move steering column in "bottom" and "extended" position.

Unscrew screw.

Installation:

1. Fit new expanding nut.

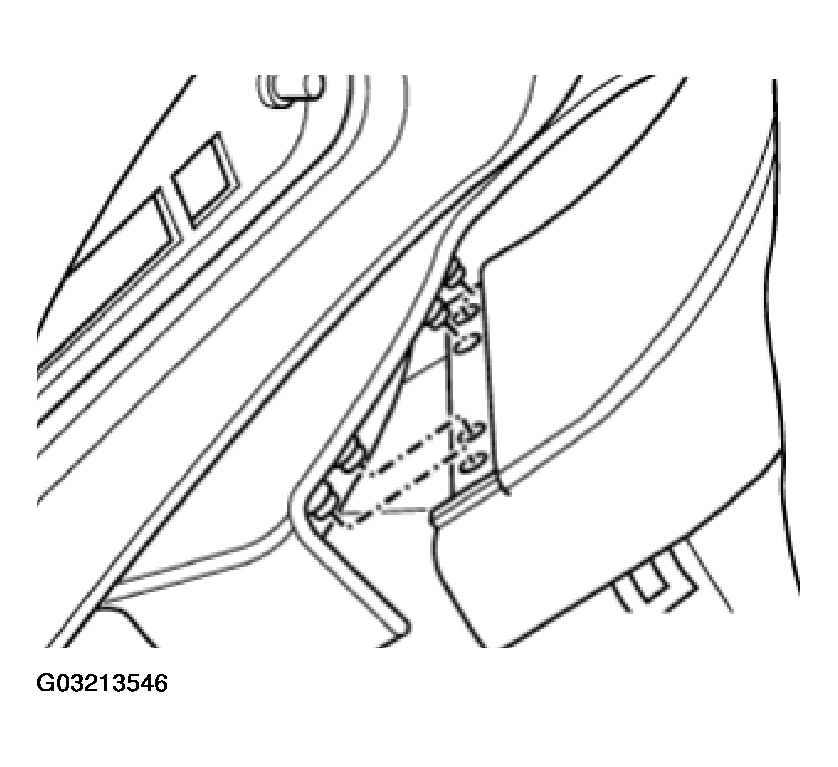

   Fig 1: Fitting Expanding Nut

   Courtesy of BMW OF NORTH AMERICA, INC.

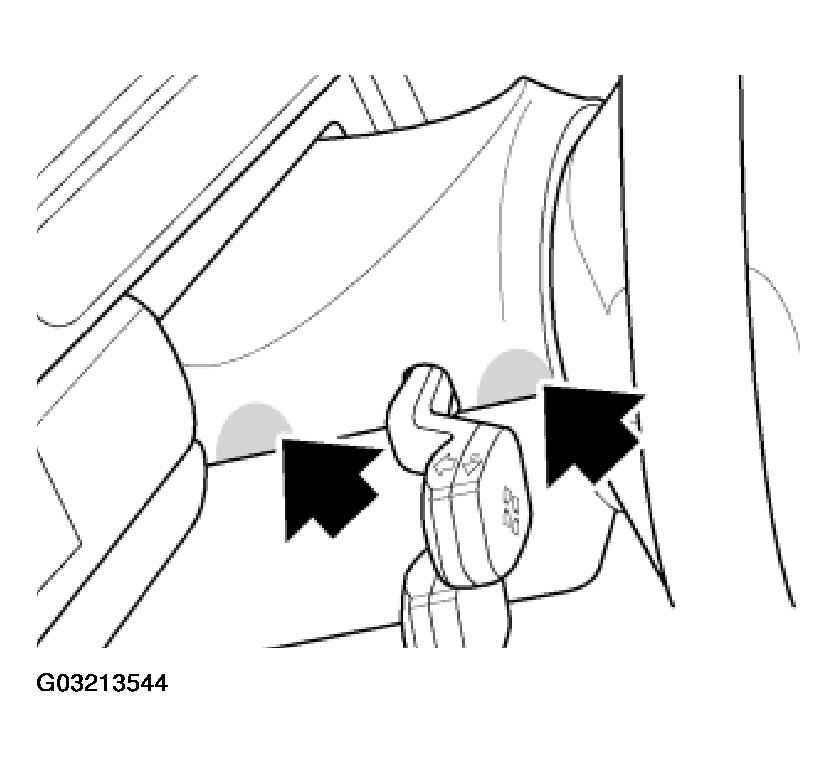

Press both sides of marked area on top section inwards and remove by pulling upwards.

Installation:

1. Locking unit (1) must locate in the hook (2).

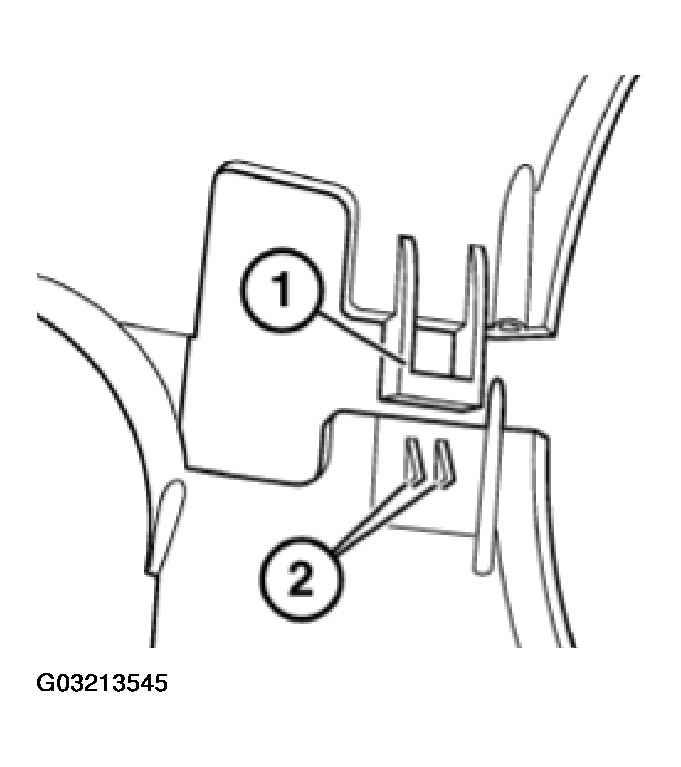

   Fig 3: Installing Locking Unit In Hook

   Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove upper section.

Installation:

1. Insert hook (1) in mounts (2).

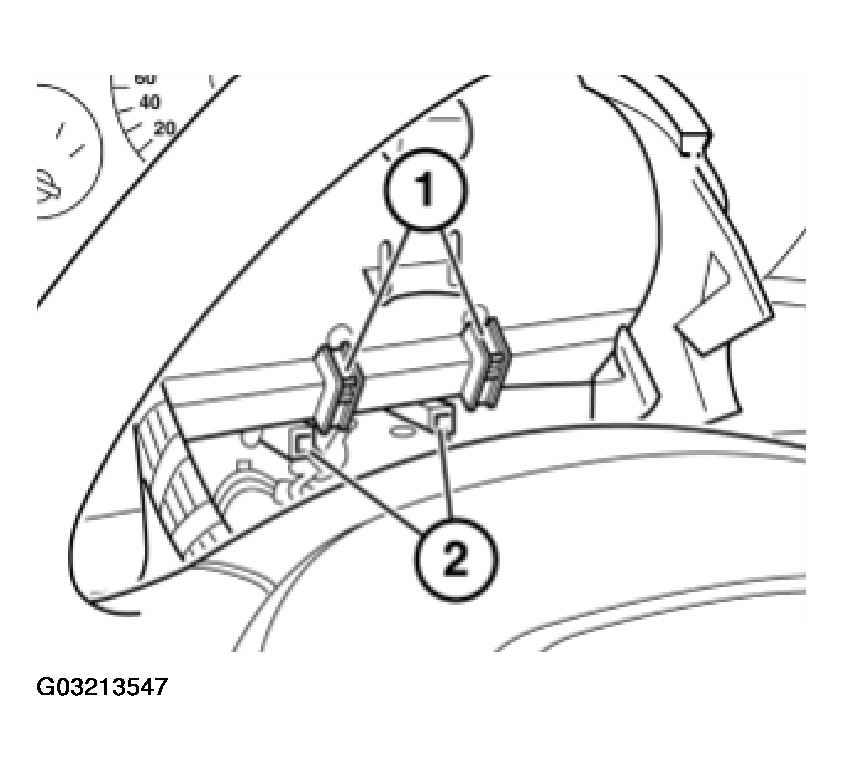

   Fig 5: Inserting Hook In Mounts

   Courtesy of BMW OF NORTH AMERICA, INC.
