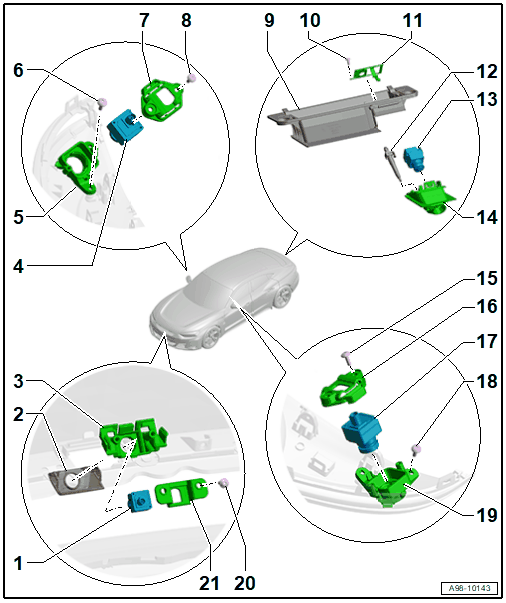

Overview - Peripheral Camera
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
- Front Peripheral Camera -R243-
- Refer to Front Peripheral CameraR243, Removing and Installing .
- Refer to Peripheral Camera, Calibrating .
- Cover
- Bracket
- Right Peripheral Camera -R245-
- Bracket
- Bolt
- 1 Nm
- Quantity: 2
- Securing Plate
- Bolt
- 1 Nm
- Quantity: 2
- Grip Piece
- Bolt
- 1 Nm
- Securing Bracket
- Washer Nozzle
- Rear Peripheral Camera -R246-
- Refer to Rear Peripheral CameraR246, Removing and Installing .
- Refer to Peripheral Camera, Calibrating .
- Mount
- Bolt
- 1 Nm
- Quantity: 2
- Securing Plate
- Left Peripheral Camera -R244-
- Bolt
- 1 Nm
- Quantity: 2
- Bracket
- Bolt
- 2 Nm
- Quantity: 2
- Securing Plate
