Display Control Head, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.
-- Switch off the ignition.
-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

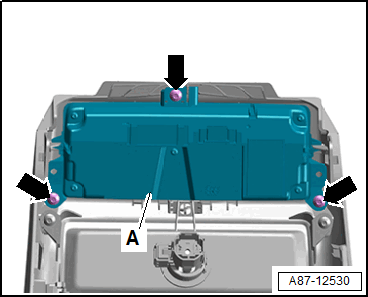

-- Remove the bolts -arrows-.
-- Remove the display control head -A-.
