Vehicle Interior Forced Air Extraction, Checking
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

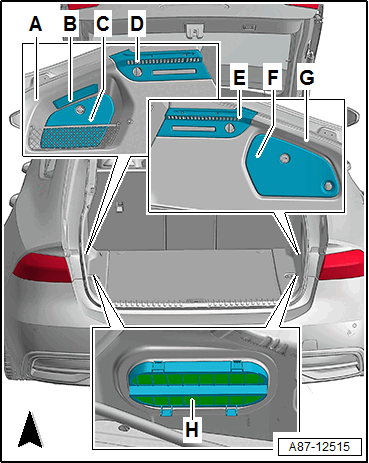

- The vent openings -B, D and E- may not be sealed or covered; otherwise, it may cause problems in the vehicle interior ventilation.
-- Unclip the cover -C and F- from the luggage compartment side trim panels -A and G-. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .
-- Check the left and right vent frame -H- for flow.
- The sealing lips in the vent frame -H- must be free to move and close.
- The vent frame -H- must be installed on the same side.
- The vent frame -H- may not be covered.
