Ionizer Control Module -J897-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Infotainment system display. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

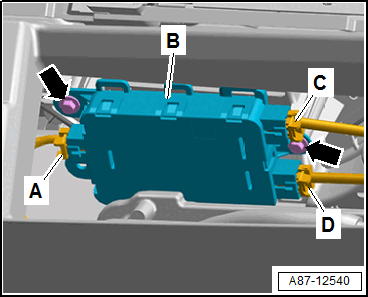

-- Remove the bolts -arrows-.
-- Remove the control module -B- and disconnect the connectors -A, C and D-.
