Fragrance Diffuser System Control Module -J1101- With Fragrance Diffuser System Blower -V686-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

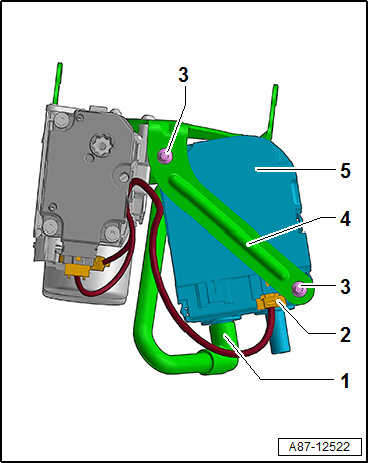

-- Remove the Fragrance System Functional Unit -GX43-, but do not disconnect it from the bracket. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .
-- Remove the connector -2-.
-- Remove the hose -1- from the Fragrance Diffuser System Control Module -J1101- -5-.
-- Remove the bolts -3- and the Fragrance Diffuser System Control Module -J1101- -5-.
