Overview - Dual Clutch Transmission Mount, Version 2

WARNING: This page is about a different car, the 2022 Audi A4 Quattro and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

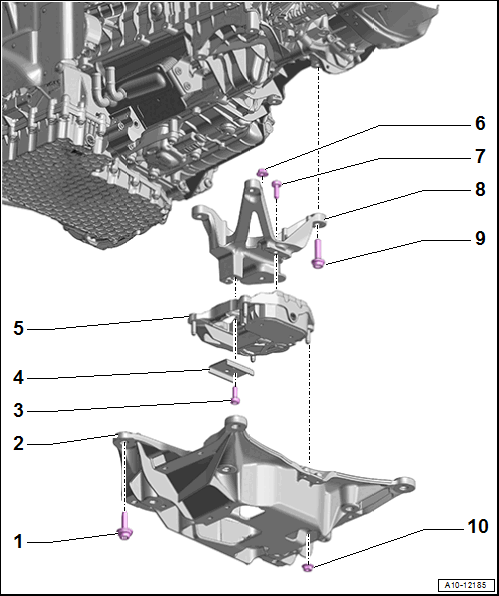

Fig 1: Exploded View Of Dual Clutch Transmission Mount, Version 2

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Tunnel Crossmember
- Removing and installing. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Stop
- For the transmission mount
Transmission Mount
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 2 .
Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
Nut
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
