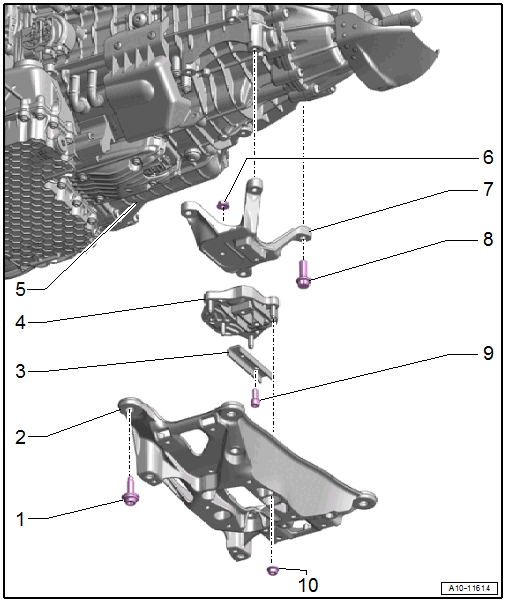

Overview - Dual Clutch Transmission Mount, Version 1
WARNING: This page is about a different car, the 2022 Audi A4 Quattro and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Tunnel Crossmember
- Removing and installing. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Stop
- For the transmission mount
- Transmission Mount
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 1 .
- Transmission
- Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
