Rear Transmission Mount, Removing And Installing, Version 1
WARNING: This page is about a different car, the 2022 Audi A4 Quattro and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Transmission Support, Removing with Transmission Mount
-- Remove the tunnel crossmember. Refer to OVERVIEW - ASSEMBLY MOUNTS .

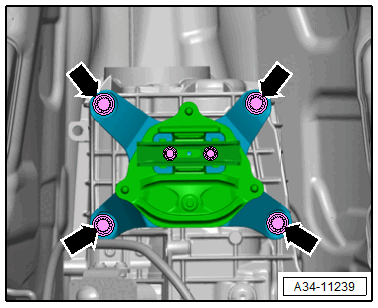

-- Remove the bolts -arrows- and remove the transmission support with the transmission mount from the transmission.
Transmission Mount, Removing

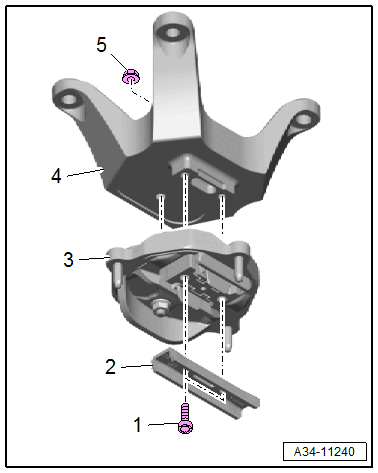

-- Remove the bolts -1- and remove the stop -2- for the transmission mount.
-- Remove the nut -5- and remove the transmission mount -3- from the transmission support -4-.
Installing
-- Tighten the nut -5- hand-tight.
-- Tighten the bolts -1- and then the nut -5-.
Further installation is performed in reverse order of the removal.
Tightening Specifications
- Refer to OVERVIEW - ASSEMBLY MOUNTS .
