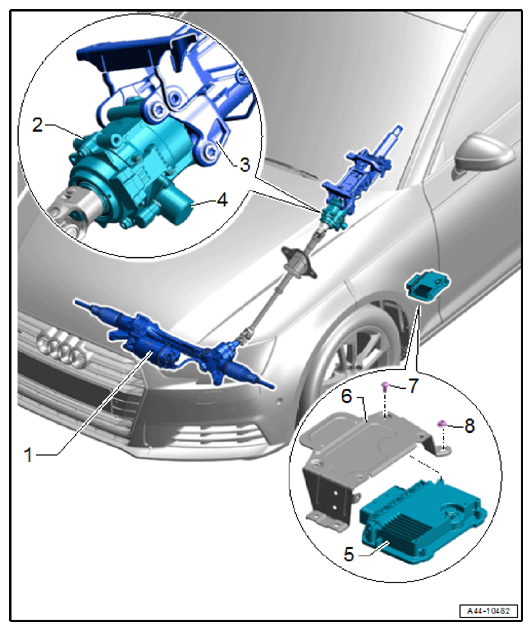

4.1 Overview - Dynamic Steering

Steering Gear
- With Electromechanical Power Steering Motor - V187- and Power Steering Control Module - J500-
Active Steering Motor - V477-
- Remove if faulty. Refer to Steering Column, Removing and Installing
Steering Column
- Overview. Refer to Overview - Steering Column
- Perform the basic setting after replacing. Refer to 4.3 Dynamic Steering Basic Setting
Active Steering Safety Lock Actuator - F437-
- Removing and installing. Refer to Active Steering Safety Lock (Locking Solenoid), Removing and Installing
Active Steering Control Module - J792-
- Component location: In front of the driver seat
- Removing and installing. Refer to 4.2 Active Steering Control Module - J792-, Removing and Installing
- Perform the basic setting after replacing. Refer to 4.3 Dynamic Steering Basic Setting
Bolt
- 8 Nm
Nut
- 6 Nm
Bracket
- For the Active Steering Control Module - J792-
