Coolant Pump, Removing And Installing: Installing
Install in reverse order of removal and note the following:
- Replace the seal after removal.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
-- Connect the coolant hoses with the connector coupling. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .

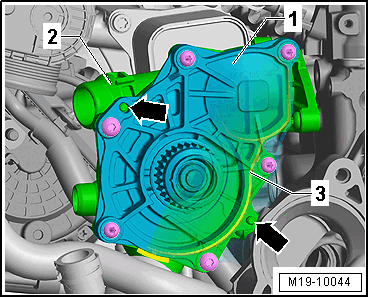

-- Install the coolant pump -1- and toothed belt.
-- Pay attention that the centering piece -arrows- and seal -3- are seated correctly.
-- Tighten the coolant pump bolts. Refer to Figure.

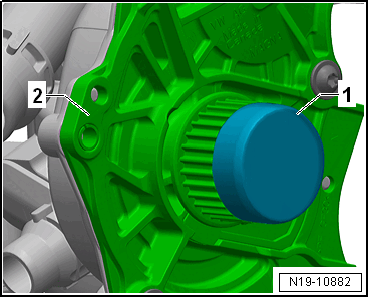

-- After installing a new coolant pump -2-, remove the protective cap -1- from the drive wheel.
Additional procedures depending on the model. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
