Overview - Transmission End Cover, Fwd Vehicles: Notes

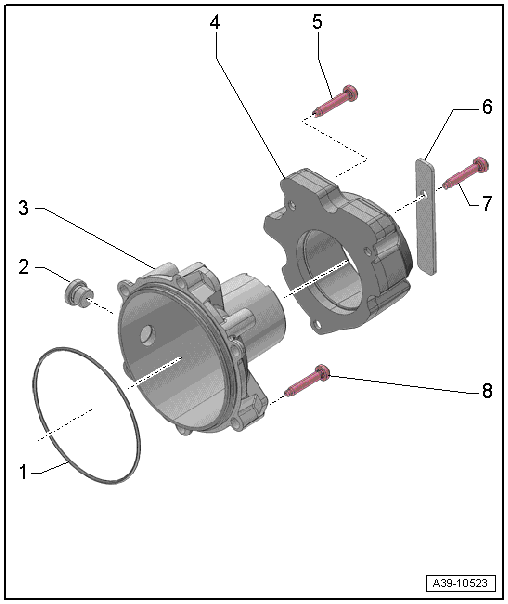

Fig 1: Exploded View Of Final Drive, Transmission End Cover

Courtesy of AUDI OF AMERICA, LLC

1. O-ring
   • Always replace
   • Coat with transmission fluid
2. Plug
   • For the inspection and fill hole
   • For the transmission fluid inside the transfer case
   • Tightening Specification. Refer to Drain and Sealing Plug .
3. Transmission End Cover
   • For FWD vehicles
   • Removing and Installing. Refer to TRANSMISSION END COVER, REMOVING AND INSTALLING .
4. Vibration Damper
5. Bolt
   • 22 Nm
6. Brace
7. Bolt
   • 22 Nm
8. Bolt
   • Always replace

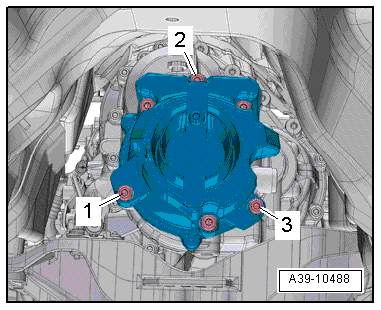

   • Tightening specification and sequence. Refer to Figure.
