Drain and Sealing Plug

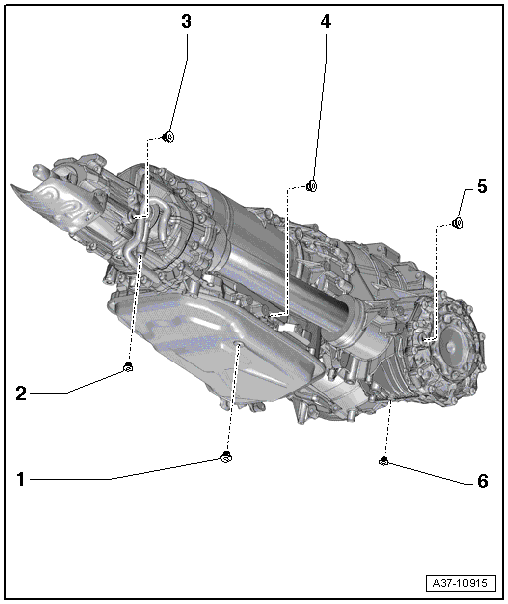

Fig 1: Transmission Drain And Inspection Plug Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

ATF Drain Plug
- 12 Nm
- Always replace
Oil Drain Plug
- 12 Nm
- Always replace
- For the transmission fluid inside the transfer case
Drain Plug
- 27 Nm
- Always replace
- For the hole for checking and filling
- For the transmission fluid inside the transfer case
Drain Plug
- 30 Nm
- Always replace
- For the ATF check and fill hole
- Different equipment depending on version
Drain Plug
- 27 Nm
- For the hole for checking and filling
- For the transmission fluid inside the front final drive
Oil Drain Plug
- 10 Nm
- For the transmission fluid inside the front final drive
