Telephone System Component Locations

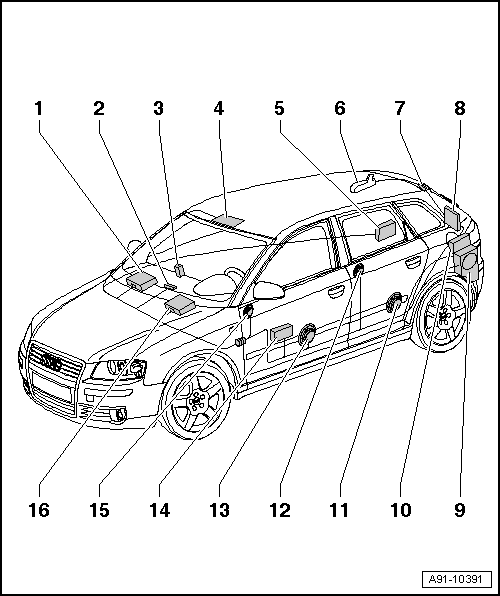

Fig 1: Telephone System Component Overview

Courtesy of AUDI OF AMERICA, LLC

CD Changer -R41-
- Inside the glove compartment.
Center Mid/High Range Loudspeaker -R158-
- In front instrument panel, center.
Telephone Baseplate -R126-
- On the instrument panel.
- Overview, refer to TELEPHONE BASEPLATE ON INSTRUMENT PANEL OVERVIEW .
- Removing and installing, refer to TELEPHONE BASEPLATE ON INSTRUMENT PANEL .
- In center armrest.
- Removing and installing, refer to TELEPHONE BASEPLATE IN CENTER ARMREST .
Telephone Microphone -R38-
- In Front Interior Light -W1-.
- Removing and installing, refer to TELEPHONE MICROPHONE .
Digital Sound System Control Module -R12-
- Only with BOSE.
- behind luggage compartment right side trim.
Antenna -R11-
- Ter/Sat/GPS/GSM.
- Roof antenna.
- Removing and installing, refer to ANTENNA .
Antenna Amplifier -R24-
- On upper left of rear lid.
Left Antenna Module -R108-
- At the bottom of the rear lid on the left side.
Amplifier with Bass Speaker in Left Luggage Compartment -R44- /Bass Speaker -R100-
- Behind luggage compartment left side trim.
Satellite Radio -R146-
- Behind luggage compartment left side trim.
Left Rear Midrange Speaker -R105- /Right Rear Midrange Speaker -R106-
- In bottom of rear doors.
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- In top of rear doors.
Left Front Mid/Low Range Loudspeaker -R101- /Right Front Mid/Low Range Loudspeaker -R102-
- In bottom of front doors.
Telephone Transceiver -R36-
- In electronics box under left front seat.
- Connectors, refer to TELEPHONE TRANSCEIVER CONNECTORS AND CONNECTOR ASSIGNMENTS .
- Removing and installing, refer to TELEPHONE TRANSCEIVER .
Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- In the center of the A-pillar.
Radio -R-
- In the top of the center console.
