Telephone BASEPLATE On Instrument Panel Overview

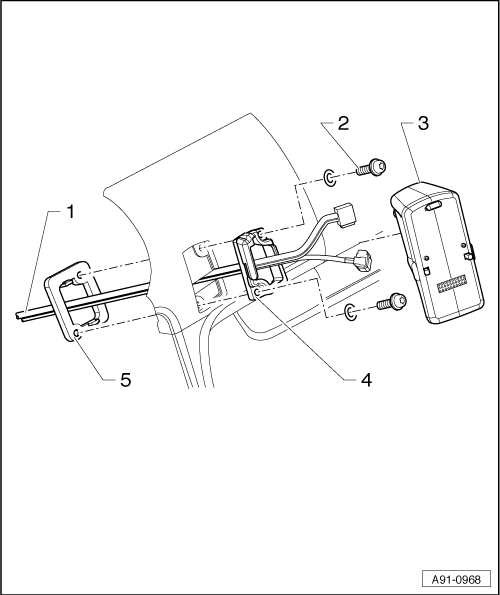

Fig 1: Identifying Telephone Baseplate On Instrument Panel Overview

Courtesy of AUDI OF AMERICA, LLC

1. Connecting Wire
   • From the telephone baseplate to the telephone transceiver -R36- and the antenna wire to the cellular telephone amplifier -R86-
2. Bolt
   • 2 Nm
3. Telephone Baseplate -R126- with Base Plate
4. Mounting Plate
5. Connecting Piece
