Multi-function steering wheel, layout
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

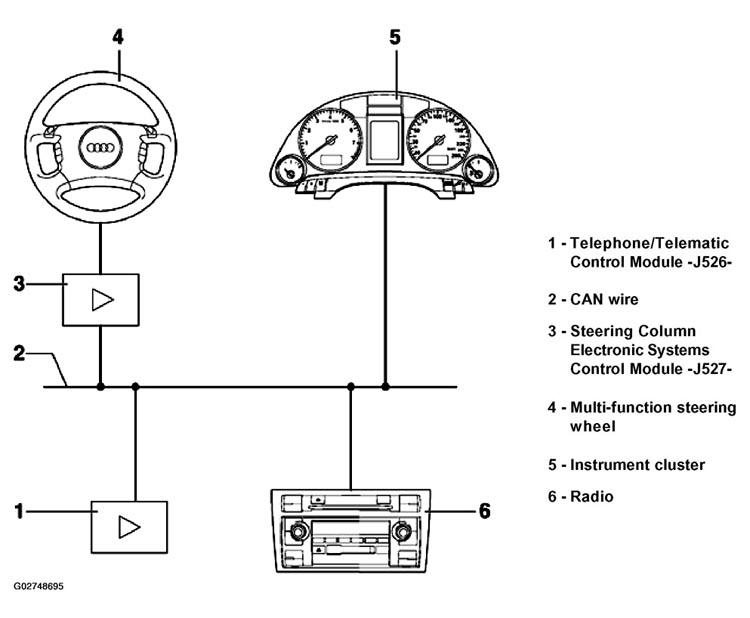

The following list pertains to Fig 1 .
- Telephone/Telematic Control Module -J526-
- In the electronics box under the passenger's seat
- Removing and installing: See TELEPHONE/TELEMATIC CONTROL MODULE -J526-, REMOVING AND INSTALLING .
- CAN wire
- Steering Column Electronic Systems Control Module -J527-
- Terminal assignments/harness electrical connections of Steering Column Electronic Systems Control module -J527- . See TERMINAL ASSIGNMENTS/HARNESS ELECTRICAL CONNECTIONS ON STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527- (FRONT) .
- Multi-function steering wheel
- With integrated control switches
- With electronics on steering wheel side
- Instrument cluster
- Radio
- In instrument panel, center
