Engine, Installing, Automatic Transmission 0B6

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14
Clutch Module Transportation Lock T40170

Tightening Specifications

NOTE:

The tightening specifications apply only to lightly greased, oiled, phosphated or blackened nuts and bolts.

Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.

Do not use any parts that have had the lubrication removed.

Tightening specification tolerance: ±15%.

Component		Nm
Bolts and nuts	M6	9
	M7	15
	M8	20
	M10	40
	M12	65

Fig 1: Disengaging Catches -Arrows A- And Remove Upper Part Of Line Pass-Through -2- Upward -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the GND bolt -1- to 9 Nm.

Fig 2: Locating Ground (GND) Wire to Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -arrow- to 9 Nm.

Fig 3: Identifying Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1, 2, 3- to 23 Nm.

Engine to Automatic Transmission 0B6

Fig 4: Identifying Engine/Transmission Connecting Bolts, Alignment Sleeves -A-, Starter Bolts -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

Item

Bolt

M10 x 50 ¹⁾

2 to 6

M12 x 100 ²⁾

30 + 90°

M12x125 ²⁾

30 + 90°

8, 11

M10 x 60 ²⁾

15 + 90°

M10 x 75 ²⁾

15 + 90°

M10 x 95 ²⁾

15 + 90°

Alignment sleeves for centering

Bolt class 10.9, the steel bolt may be used again unlimited number of times.
The aluminum bolts -2 to 11- may be used twice (See Fig 4).
The aluminum bolts may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow- (See Fig 5).

⁽¹⁾	To prevent damaging the bolts when marking them, do not clamp them in a vise. Insert the bolt using a 14 mm socket with a 1/2 drive, which is inserted in to the vise, as illustrated (See Fig 5).

The aluminum bolts -2 to 11- may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have been used the first time -arrow-.

Fig 5: Identifying Aluminum Bolts Marked With An "X"
Courtesy of AUDI OF AMERICA, LLC
Bolts marked with an "X" may not be used again.

Procedure

NOTE:

Replace the bolts which are being tightened with an additional turn.

Replace self-locking nuts and bolts and seals, gaskets and O-rings.

The drive plate in the vehicles with the automatic transmission 0B6 must not have any needle bearings. Check if a needle bearing is inserted before installing. Remove the needle bearing in the drive plate, refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .

Secure all hose connections with hose clamps of the same type as those equipped by the factory .

In order to be able to securely mount the air guide hoses on their connectors, spray the screws on the previously used clamps with a rust remover.

When installing, bring all cable ties back to same positions.

-- When jointing the engine and subframe, hold the ATF lines in their installation position.

-- Clean the threaded holes in the cylinder block for connecting the engine and transmission using a thread tap before installing the transmission.

-- The following preparations must be made before connecting the engine and transmission:

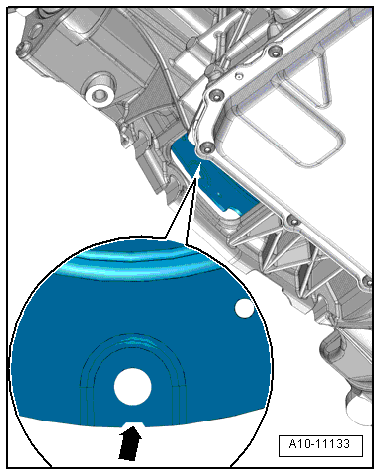

Fig 6: Locating Hole Next To Notch

Courtesy of AUDI OF AMERICA, LLC

-- Turn the torque converter so that hole next to the notch -arrow- is visible in the lower cut-out in the transmission housing as illustrated.

NOTE:

There is only 1 notch on the circumference; rotate the torque converter as needed.

-- Insert the Clutch Module Transportation Lock T40170 in the transmission housing from below and secure it on the flange shaft -1-.

Fig 7: Identifying Transportation Lock T40170

Courtesy of AUDI OF AMERICA, LLC

-- Inspect the aluminum bolts used to connect the engine to the transmission to see if they can be used again and mark them, if necessary, refer to ENGINE, INSTALLING, AUTOMATIC TRANSMISSION 0B6 - The aluminum bolts -2 to 11- may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have been used the first time -arrow-..

-- Check if the alignment sleeves -A- for centering the engine/transmission are in the cylinder block and insert them if they are not.

Fig 8: Checking If Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Position the transmission on the engine and tighten the bolts -1 through 11-.

-- Remove the Clutch Module Transportation Lock T40170.

-- Install the engine supports and engine mount, refer to OVERVIEW - SUBFRAME MOUNT .

NOTE:

The following step is necessary to make sure the torque converter rests on the drive plate evenly and is not tilted.

Fig 9: Pressing Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Press the torque converter -2- against the drive plate -3- slightly in the direction of the -arrow- using an assembly lever -1-.

-- Attach the torque converter to the drive plate as follows:

Fig 10: Identifying Clutch Module First Bolt Installation Location

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Use the Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14 to tighten the bolts.

-- Install the first bolt -arrow- and tighten by hand (2 Nm).

-- Insert the Crankshaft Socket T40058 guide pins as follows:

Fig 11: Guide Pin And Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

The large diameter -arrow 1- faces the engine.
The small diameter -arrow 2- faces the adapter.

-- Continue turning the crankshaft 180° in the direction of the engine rotation using the Crankshaft Socket T40058 -arrow-.

Fig 12: Identifying TDC With Special Tool Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the accessible bolts -arrow- in this crankshaft position to the tightening specification, refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

Fig 13: Identifying Clutch Module First Bolt Installation Location

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft 60° farther and tighten the remaining five bolts to the tightening specification, refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

-- Install the power steering hydraulic lines, refer to POWER STEERING PUMP, HYDRAULIC LINES AND RESERVOIR .

-- Install the left and right drive axles on the transmission flange shafts, refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Install the drive axle heat shield, refer to Fig 3.

-- Install the catalytic converters, refer to LEFT CATALYTIC CONVERTER, REMOVING AND INSTALLING, WITH AUTOMATIC TRANSMISSION 0B6 , refer to RIGHT CATALYTIC CONVERTER, REMOVING AND INSTALLING, WITH AUTOMATIC TRANSMISSION 0B6 .

-- Lift the engine/transmission assembly using the Scissor Lift Table VAS6131B.

-- Align the subframe and transmission carrier using the marks made on the longitudinal members during removal.

-- Tighten the subframe bolts only to the tightening specifications, do not tighten them further (tighten the bolts only after axle alignment), refer to INSTALLING .

Fig 14: Identifying Subframe Bolts

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of accident due to loose connections.

If the bolts in the subframe are not tightened to final torque, vehicle must not be driven.

-- Tighten the tunnel crossmember bolts -arrows-, refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .

Fig 15: Identifying Crossmember & Bolts

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Install the ATF lines, refer to OVERVIEW - ATF CIRCUIT .

-- Attach the universal joint to the steering gear, refer to OVERVIEW - STEERING COLUMN -item 18- .

-- Install the driveshaft, refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Install the selector lever cable, refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .

-- Install the front muffler, refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Install the subframe crossbrace, refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Install the upper control arm, refer to UPPER CONTROL ARM, REMOVING AND INSTALLING .

-- Install the stabilizer bar, refer to STABILIZER BAR, REMOVING AND INSTALLING .

-- Fasten the suspension strut on the control arm, refer to OVERVIEW - SUSPENSION STRUT WITH MOUNTING BRACKET, SHOCK ABSORBER FORK, UPPER CONTROL ARM AND TOWER BRACE .

-- Install the brake caliper, refer to BRAKE CALIPER, REMOVING AND INSTALLING .

-- Install the Engine Control Module (ECM), refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

-- Electrical connections and wiring routing, refer to appropriate SYSTEM WIRING DIAGRAM.

-- Install the wires, the Terminal 30 Wire Junction 2 -TV22- and the cover for the engine compartment E-box, refer to appropriate SYSTEM WIRING DIAGRAM and OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

-- Install the tower brace, refer to TOWER BRACE, REMOVING AND INSTALLING .

-- Install the windshield wiper fluid reservoir filler tube, refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Install the refrigerant lines, refer to REFRIGERANT LINES FOR BATTERY COOLING MODULE IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Follow all steps after connecting the battery, refer to battery - CONNECTING .

CAUTION:

There is a risk of destroying control modules with excess voltage.

Do not use a charger as a starting aid.

-- Install the fuel supply hose (refer to OVERVIEW - HIGH PRESSURE PUMP ) and air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Install the lock carrier braces, refer to LOCK CARRIER .

-- Fill the engine oil and check the oil level. Refer to ENGINE OIL LEVEL, FILLING AND CHECKING .

-- Before starting engine for the first time, fill the hydraulic oil in the power steering reservoir, refer to POWER STEERING FLUID LEVEL, CHECKING .

NOTE:

Do not run the power steering pump when it is dry.

-- Connect the coolant hose to the coupling, refer to Fig 16.

Fig 16: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

Fig 17: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

-- Fill with coolant, refer to COOLANT, DRAINING AND FILLING => Filling .

NOTE:

Do not use drained coolant in the following situations:

If the cylinder head or cylinder block was replaced.

If the coolant is contaminated.

-- Fill the refrigerant circuit, refer to REFRIGERANT CIRCUIT, CHARGING WITH SERVICE STATION .

-- Install the front front wheels, wheel bolt tightening specification: 140 Nm and perform an alignment, refer to OVERVIEW - WHEEL ALIGNMENT PROCEDURE .

WARNING:

Risk of accident due to loose connections.

Tighten the subframe bolts to the specification after performing axle alignment.

-- Check the ATF level, refer to ATF LEVEL, CHECKING .

-- Install the noise insulations and wheel housing liner, refer to OVERVIEW - NOISE INSULATION and WHEEL HOUSING LINER .
