Overview - Remote Control Key

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

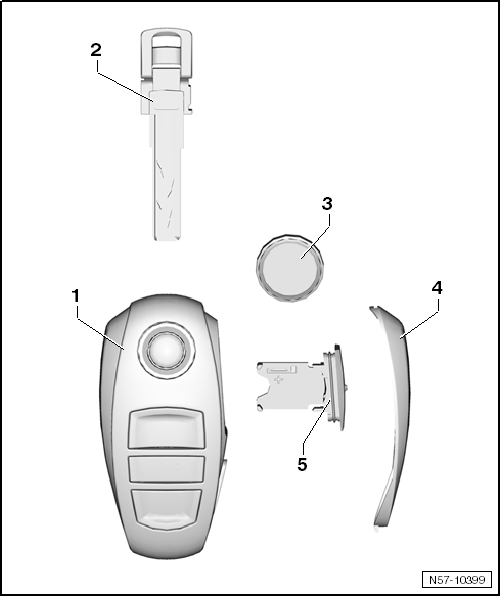

Fig 1: Exploded View Of Remote Control Key
GWWN57-10399Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Remote Control Key
  2. Emergency Key
  3. Battery
  4. Cover
  5. Battery Compartment
